Fuse Block Removal/Installation: Removal

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. LF control unit (with advanced keyless entry system) (See LF CONTROL UNIT REMOVAL/INSTALLATION .)
  3. Remove all the fuses.
  4. Cut the bands shown in the figure below.
    Fig 1: Fuse Block Band
    G11467409Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.

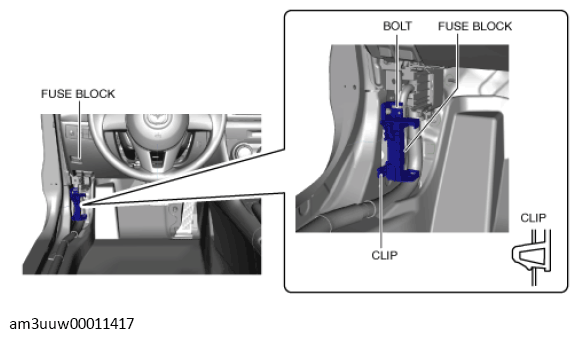

    Fig 2: Fuse Block Bolt And Clip
    G11467410Courtesy of MAZDA MOTORS CORP.
  6. Remove the fuse block clip from the body.
  7. Set the removed fuse block aside so that it does not scratch the vehicle and parts.
