Neutral Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

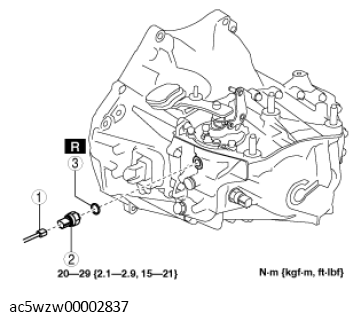

Fig 1: Installing Neutral Switch With Torque Specifications
G11539841Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Neutral switch connector
2 Neutral switch
3 Gasket
