AWD Control Module Component Installation Note

  1. Install the bracket tabs of the AWD control module component to the assembly holes.

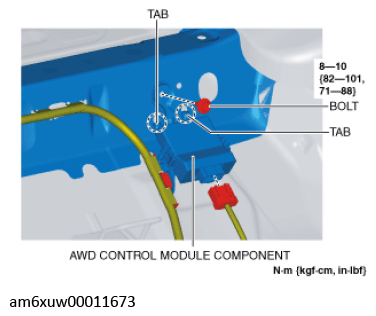

    Fig 1: Installing Bracket Tabs Of AWD Control Module Component To Assembly Holes
    G12234291
  2. Install the AWD control module component installation bolt.
