Parking Sensor System Operation Switching Procedure

NOTE:

The parking sensor system operation switching can only be performed on vehicles with the front parking sensor.
The parking sensor system can be switched between automatic and manual by performing this procedure.
For each operation condition, if the system is set to automatic/manual, refer to the [PARKING SENSOR SYSTEM] for technical guide

Switch using the following procedure:

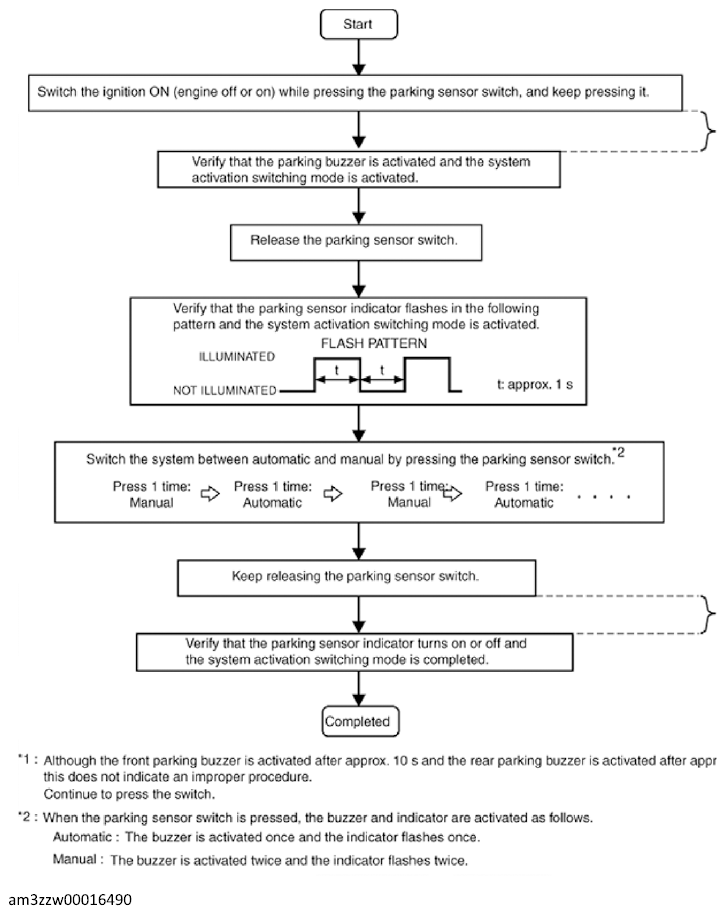

Fig 1: Parking Sensor System Operation Switching Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
