Control System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

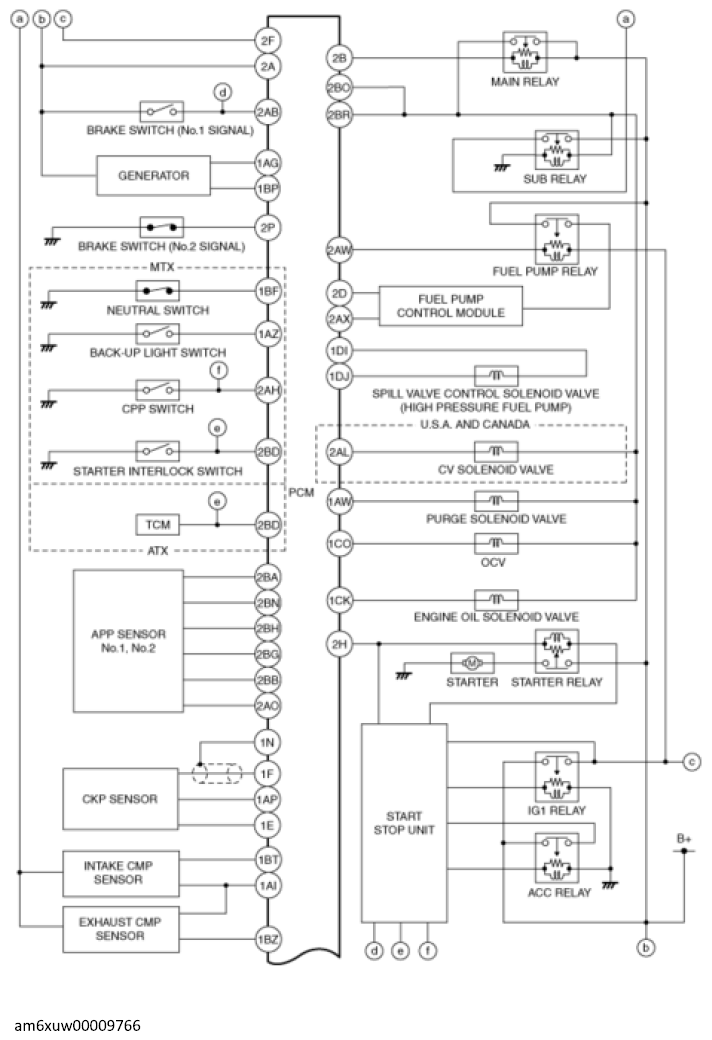

Fig 1: Control System Wiring Diagram (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

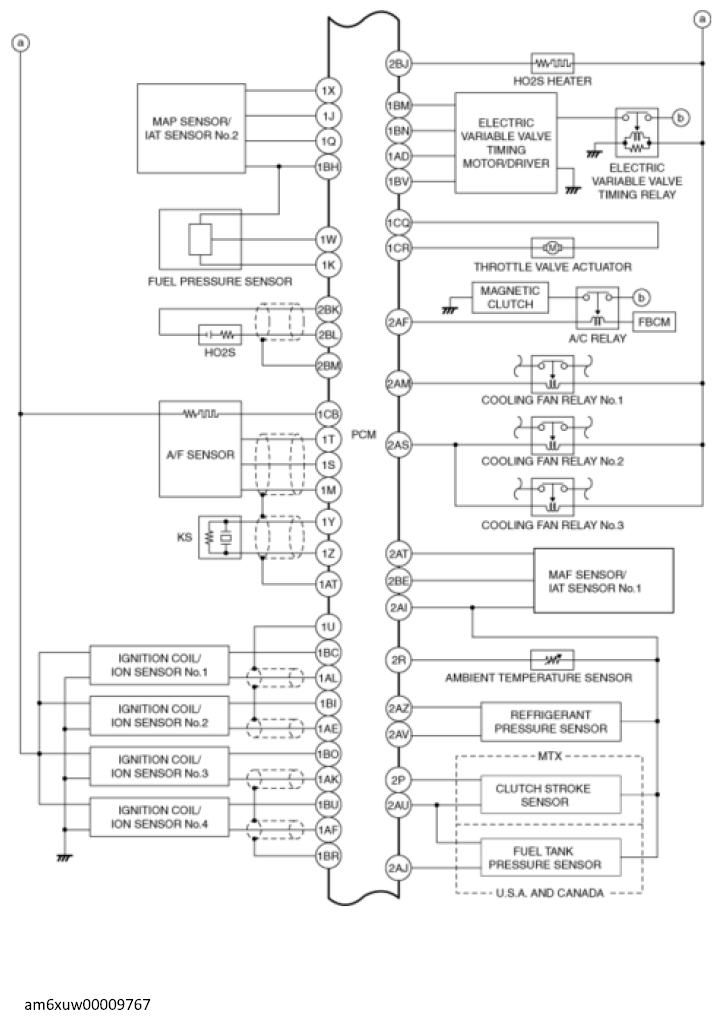

Fig 2: Control System Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

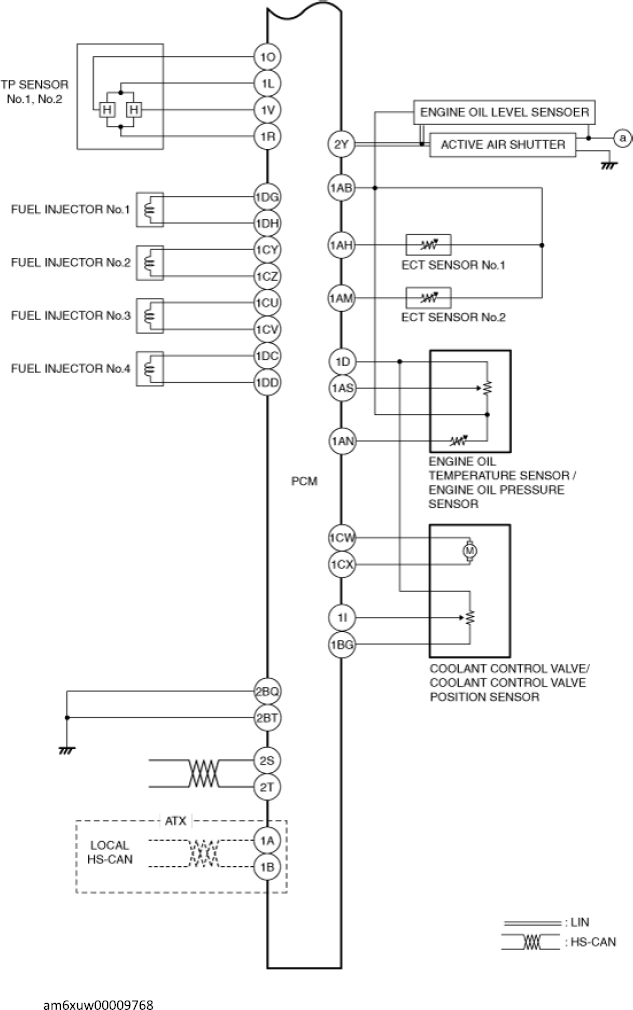

Fig 3: Control System Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
