DTC C0089-64: TCS Off Switch: Notes
DTC C0089:64 (DYNAMIC STABILITY CONTROL) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C0089:64 |
TCS OFF Switch |
| DETECTION CONDITION |
- Continuous ON signal from the TCS OFF switch for 10 s or more is detected.
|
| FAIL-SAFE FUNCTION |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents". (See DTC TABLE (Dynamic Stability Control (DSC)) .) |
| POSSIBLE CAUSE |
- The driver pressed and held the TCS OFF switch for 10 s or more.

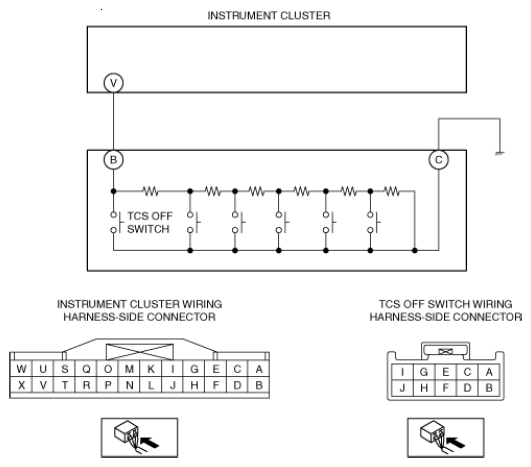

- Short to ground in the wiring harness between the instrument cluster terminal V and TCS OFF switch terminal B
- Open circuit in wiring harness between TCS OFF switch terminal C and body ground
- TCS OFF switch malfunction
- Poor connection at connectors (female terminal)
|
|
|
