Intake-air System Location Index

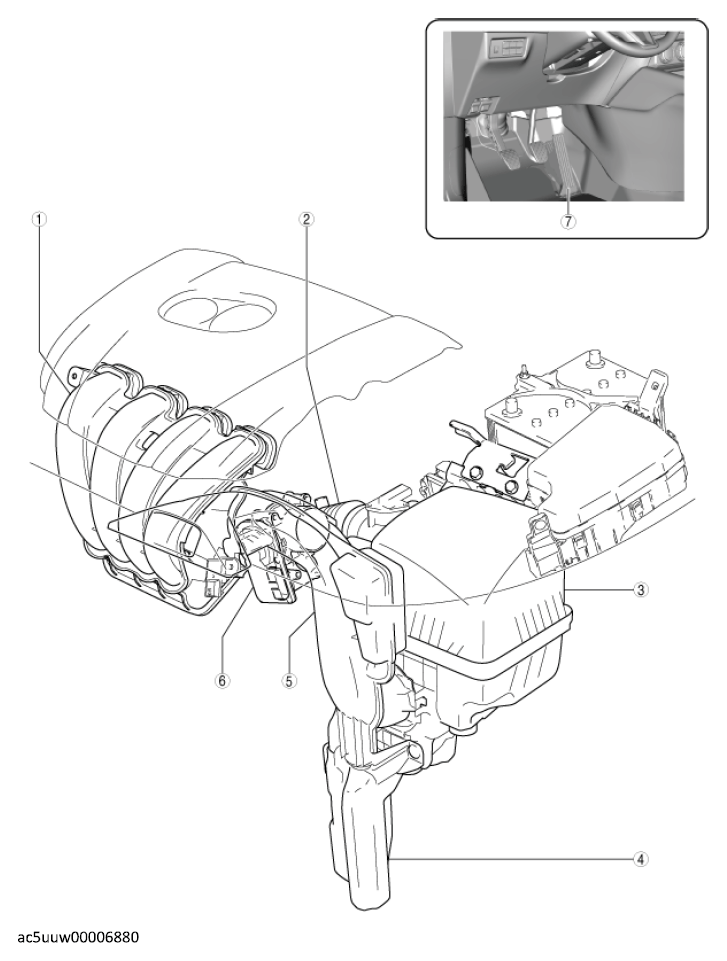

Fig 1: Intake-Air System Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Intake manifold (See Intake-air System Removal/Installation .) (See Intake Manifold Vacuum Inspection .)
2	Air hose (See Intake-air System Removal/Installation .)
3	Air cleaner (See Intake-air System Removal/Installation .) (See Air Cleaner Element Removal/Installation .) (See Air Cleaner Element Inspection .)
4	Resonance chamber (See Intake-air System Removal/Installation .)
5	Fresh-air duct (See I Intake-air System Removal/Installation .)
6	Throttle body (See Intake-air System Removal/Installation .) (See Throttle Body Inspection .)
7	Accelerator pedal (See Accelerator Pedal Removal/Installation .)
