Troubleshooting Procedure

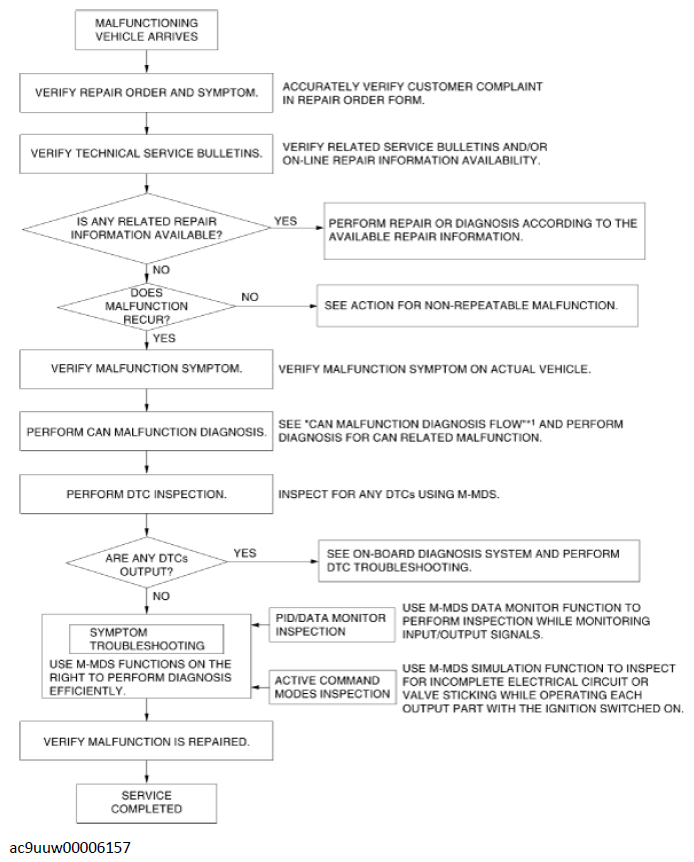

Fig 1: DSC HU/Control Module Troubleshooting Procedure Chart
G11432869Courtesy of MAZDA MOTORS CORP.

*1:(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
