Exhaust System Removal/Installation (AWD): Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove in the order indicated in the table.
3. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION (AWD) .)
4. Install in the reverse order of removal.

   Step 1

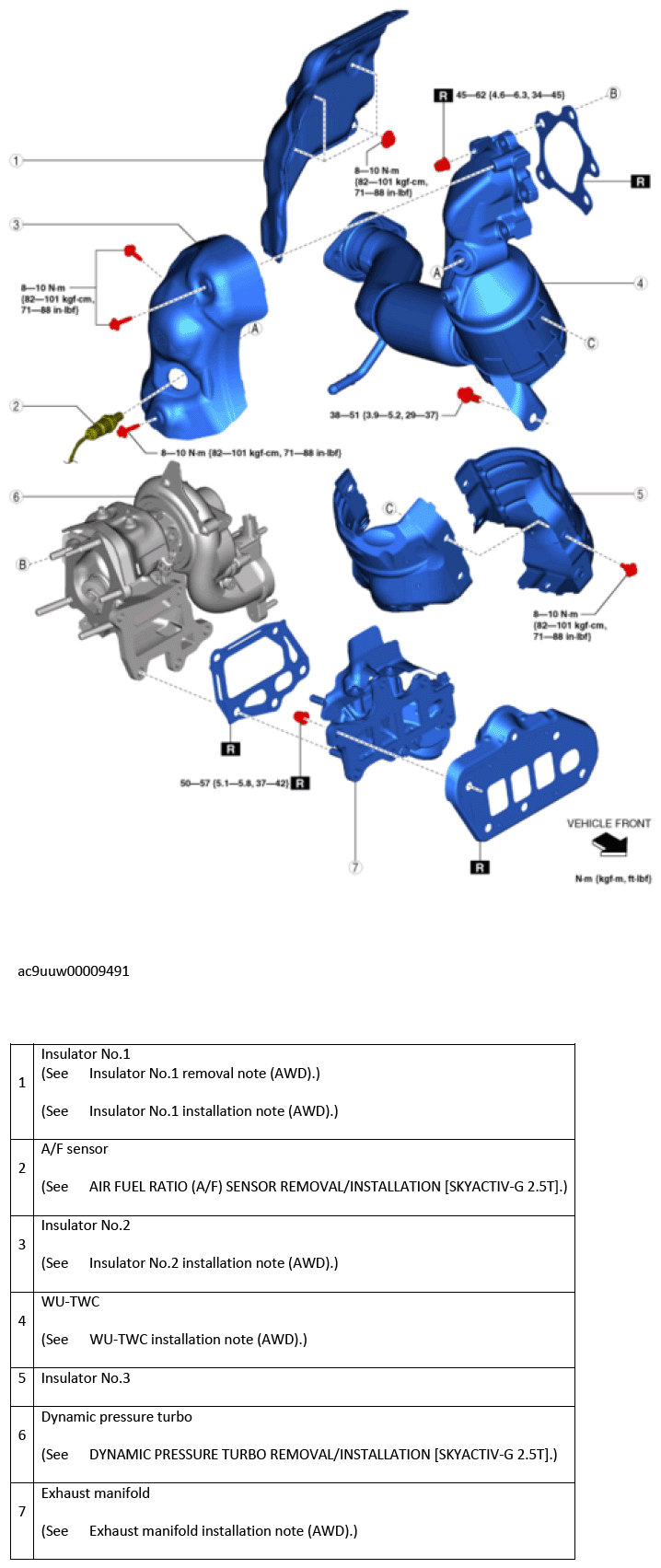

   Fig 1: Exhaust System Components With Torque Specification - Step 1 (AWD)

   Courtesy of MAZDA MOTORS CORP.

   Step 2

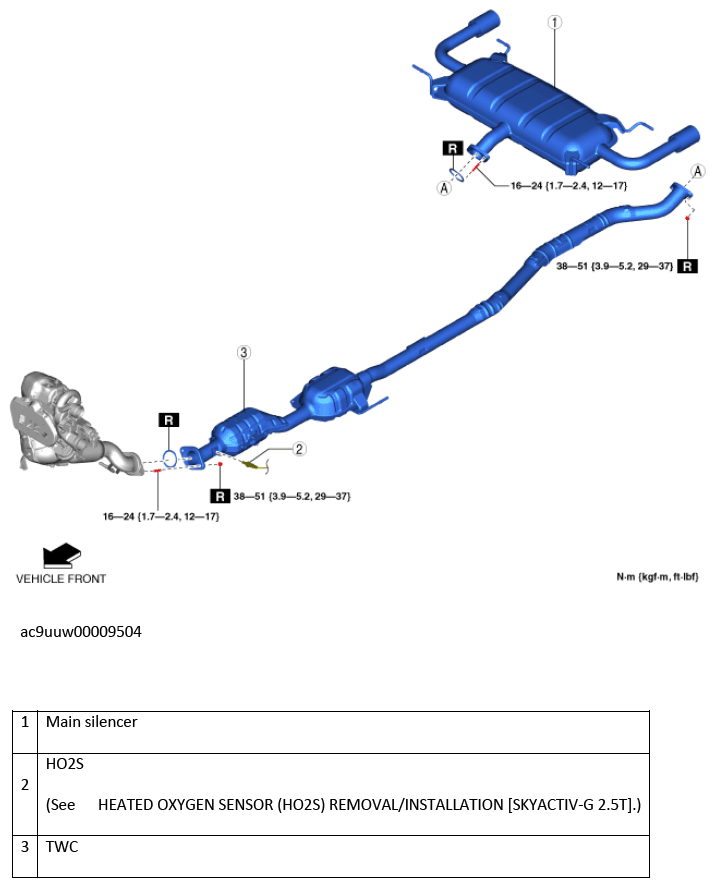

   Fig 2: Exhaust System Components With Torque Specification - Step 2 (AWD)

   Courtesy of MAZDA MOTORS CORP.
