Engine Location Index

U.S.A. And Canada

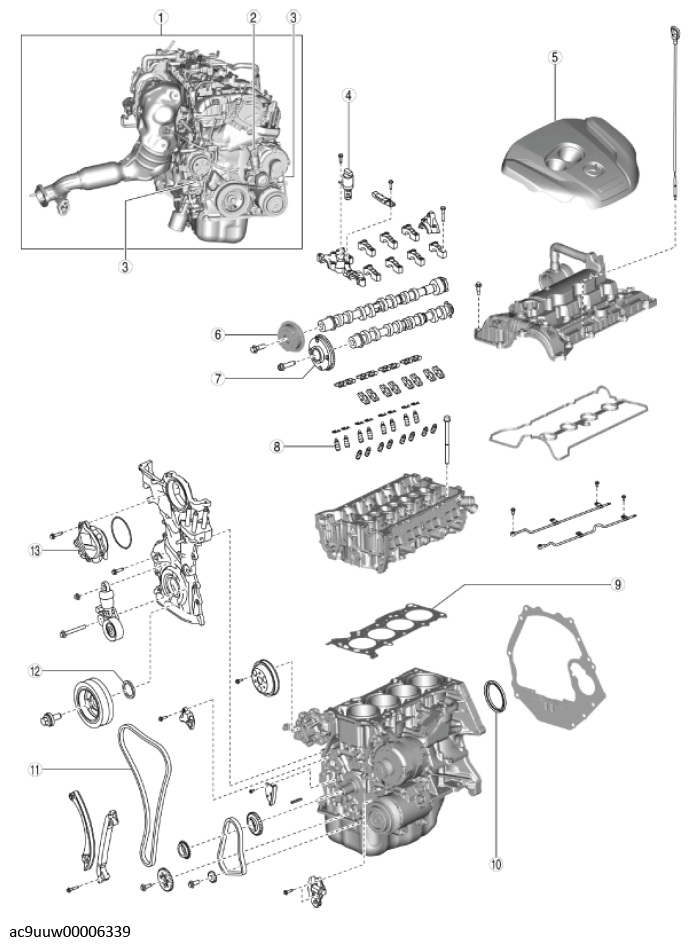

Fig 1: Engine Components Location (USA And CANADA)

G11436613

Courtesy of MAZDA MOTORS CORP.

Except U.S.A. And Canada

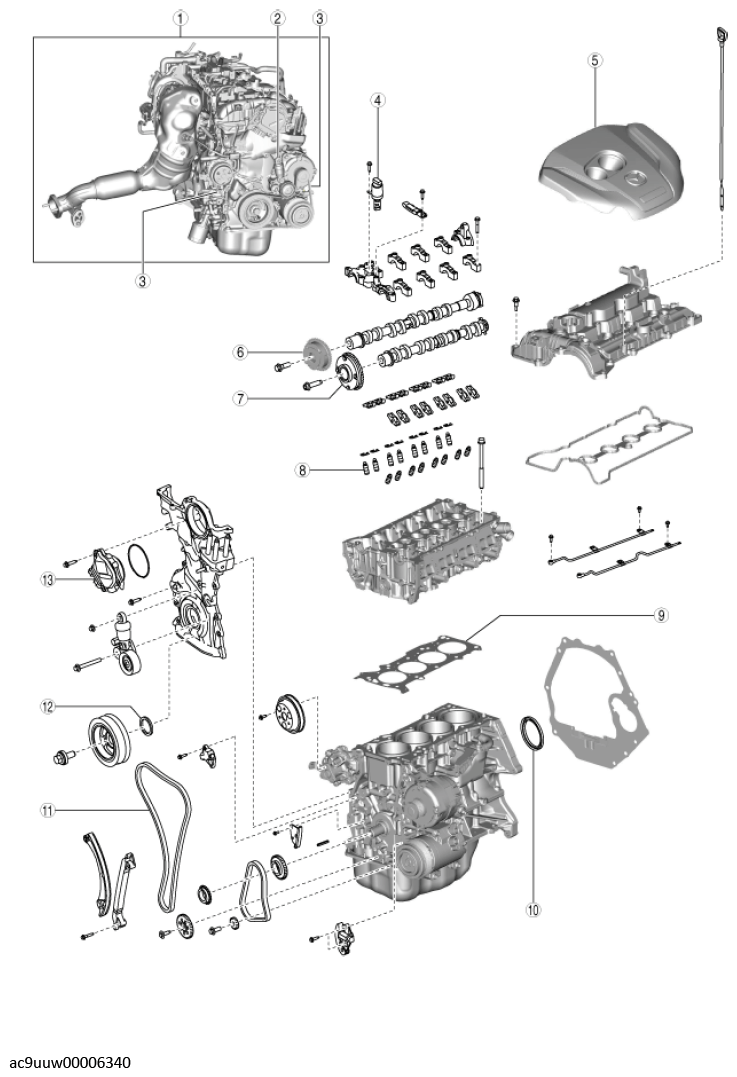

Fig 2: Engine Components Location - Except U.S.A. And Canada

G12243913

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Engine (See Engine Tune-up .) (See Compression Inspection .) (See Engine Mount Disassembly/Assembly .) (See Engine Removal/Installation .) (See Engine Disassembly/Assembly .)
2	Drive belt auto tensioner (See Drive Belt Auto Tensioner Inspection .) (See Drive Belt Auto Tensioner Removal/Installation .)
3	Drive belt (See Drive Belt Inspection .) (See Drive Belt Removal/Installation .)
4	OCV (See Oil Control Valve (OCV) Inspection .) (See Oil Control Valve (OCV) Removal/Installation .)
5	Plug hole plate (See Plug Hole Plate Removal/Installation .)
6	Hydraulic variable valve timing actuator (See Hydraulic Variable Valve Timing Actuator Inspection .) (See Electric Variable Valve Timing Actuator, Hydraulic Variable Valve Timing Actuator Removal/Installation .)
7	Electric variable valve timing actuator (See Electric Variable Valve Timing Actuator Inspection .) (See Electric Variable Valve Timing Actuator, Hydraulic Variable Valve Timing Actuator Removal/Installation .)
8	HLA (See Hydraulic Lash Adjuster (HLA) Inspection .) (See Hydraulic Lash Adjuster (HLA) Removal/Installation .)
9	Cylinder head gasket (See Cylinder Head Gasket Replacement .)
10	Rear oil seal (See Rear Oil Seal Replacement .)
11	Timing chain (See Timing Chain Removal/Installation .)
12	Front oil seal (See Front Oil Seal Replacement .)
13	Electric variable valve timing motor/driver (See Electric Variable Valve Timing Motor/Driver Inspection .) (See Electric Variable Valve Timing Motor/Driver Removal/Installation .)
