Airflow Mode Main Link Installation Note
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

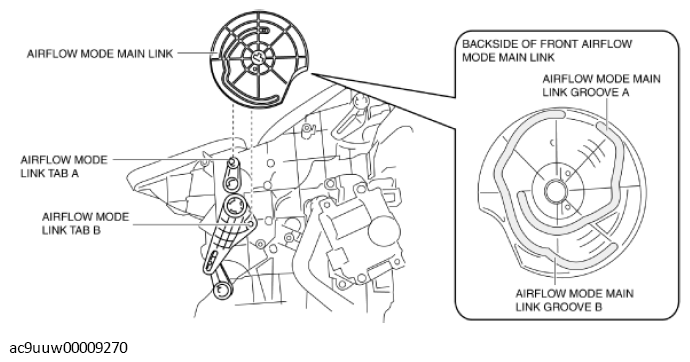

- When installing the airflow mode main link, verify that airflow mode link tab A is installed in airflow mode main link groove A and airflow mode link tab B is installed in airflow mode main link groove B.
Courtesy of MAZDA MOTORS CORP.
