| DTC |
C101C:18 |
Electric vacuum pump: drive current decrease |
| DETECTION CONDITION |
- Electric vacuum pump drive circuit electrical current is low for a continuous 3 s when the electric vacuum pump is operated.
|
| FAIL-SAFE FUNCTION |
- Refer to "Fail-safe function table". (See DTC TABLE ).
|
| POSSIBLE CAUSE |

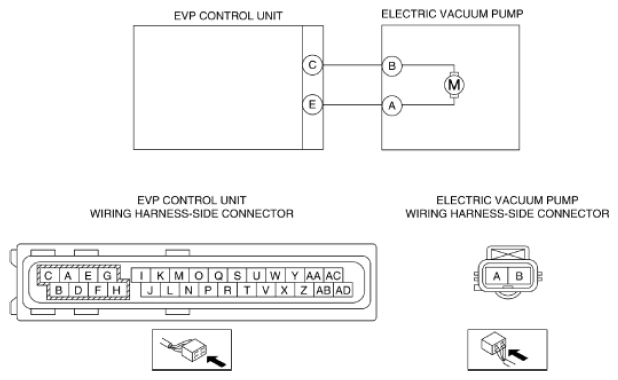

- Malfunctions (open circuit, connection malfunction) in the following wiring harnesses and connectors
- Electric vacuum pump terminal B-EVP control unit terminal C
- Electric vacuum pump terminal A-EVP control unit terminal E
- Electric vacuum pump malfunction
- EVP control unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
