Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION ).
Remove the front suspension tower bar (joint). (With front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION ).
Remove in the order indicated in the figure below.
Install in the reverse order of removal.

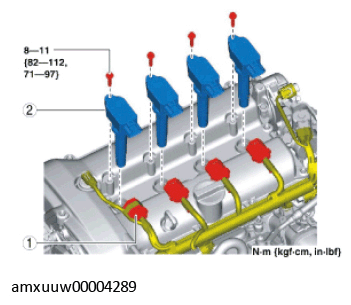

Fig 1: Removing/Installing Ignition Coil/Ion Sensor With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Ignition coil/ion sensor
