| System malfunction location |
- Occupant classification sensor internal signal output unstable
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Occupant classification sensor internal malfunction
- Occupant classification sensor calibration setting has not been done correctly
|
| Fail-safe |
- |
| Possible cause |
- Occupant classification sensor malfunction
- SAS control module malfunction
- Seat cushion is damp

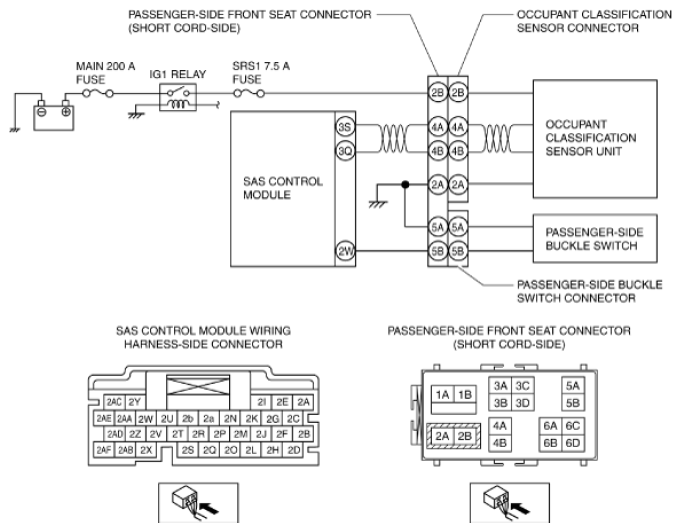

- Malfunction in the power supply circuit of the occupant classification sensor
- Malfunction in the body ground circuit of the occupant classification sensor
- Passenger's seat electric parts malfunction
- Malfunction in the power supply circuit of the passenger's seat electric parts
- Malfunction in the body ground circuit of the passenger's seat electric parts
|
