| System malfunction location |

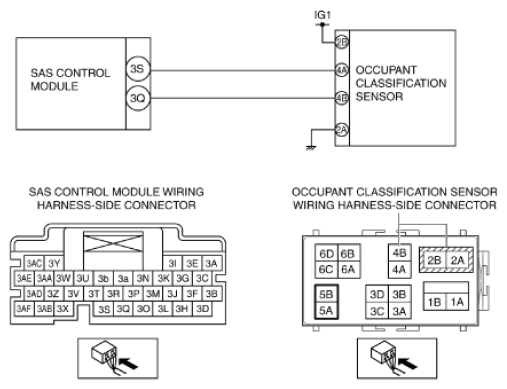

- B00C0:93:Occupant classification sensor communication error (occupant classification sensor mat structural malfunction)
- B00C1:93:Occupant classification sensor communication error (occupant classification sensor shield mat structural malfunction)
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction signal receibed occupant sensor
|
| Fail-safe |
- |
| Possible cause |
- Occupant classification sensor malfunction
- SAS control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
