Front Camera Aiming Procedure: Notes

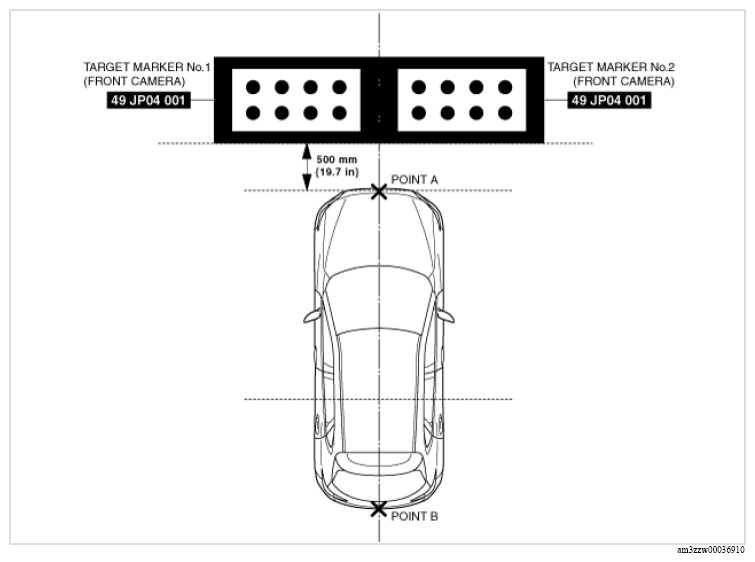

  1. Position the SSTs at the positions shown in the figure.
    G13083348Courtesy of MAZDA MOTORS CORP.
  2. Connect the M-MDS to the DLC-2.
  3. Close all the doors (front door, rear door) and the trunk lid (4SD)/liftgate (5HB).
  4. Verify that the outer mirrors are unfolded.
  5. Operate the electric parking brake.
  6. Shift the selector lever to the P position. (ATX)
  7. Shift the shift lever to the neutral position. (MTX)
  8. After vehicle identification is completed, select the following from the M-MDS initial screen.
    1. [Toolbox]
    2. [Work Support]
    3. [i-ACTIVSENSE]
    4. [Static aiming]
    5. [Static aiming for 360° View Monitor System]
  9. Perform the front camera aiming procedure according to the directions on the M-MDS.
  10. Verify the M-MDS display.
    • If [Procedure completed successfully] is displayed
    • If [Procedure not completed successfully] is displayed.
      • Perform an inspection according to the following table for the error code procedure.
      • If an error code other than the error codes in the following table is displayed, verify the following and perform the front camera aiming again if there is no malfunction, as there could be a communication error between the 360° view monitor control module and the diagnostic tester.
    1. Is the battery positive voltage for the vehicle 8 V or more?
    2. Is the ignition switched to ACC or ON (engine off or on)?
Error code Detection Condition
09 Target marker No. 1 of front camera is not detected
0A Target marker No. 2 of front camera is not detected
10 Input vehicle value exceeds specification
12 Because the following aiming implementation conditions are not met, the aiming is not completed.
  • Vehicle stopped
  • All doors (front door, rear door) and trunk lid (4SD)/liftgate (5HB) closed
  • Outer mirrors unfolded
  • Electric parking brake operated
  • Selector lever is in P position (ATX)
  • Shift lever is in neutral position (MTX)
15 Aiming is not possible due to malfunction in 360° view monitor control module
18 360° view monitor control module cannot receive front camera images
1A Power supply to camera insufficient
