Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

NOTE:
  • Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

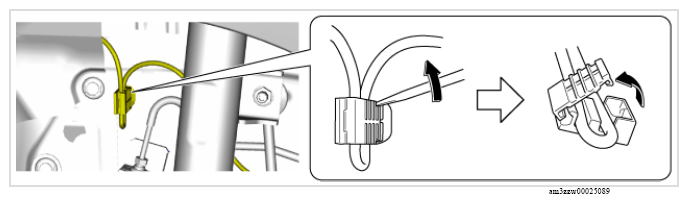

  1. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure.
    G13176291Courtesy of MAZDA MOTORS CORP.

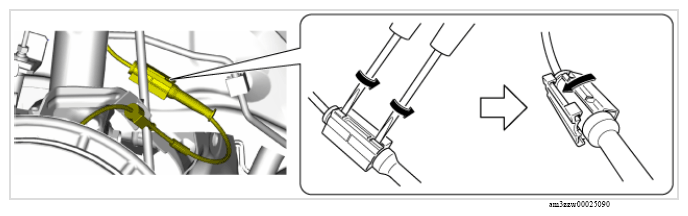

  2. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure.
    G13176292Courtesy of MAZDA MOTORS CORP.
