Fuel Pump Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

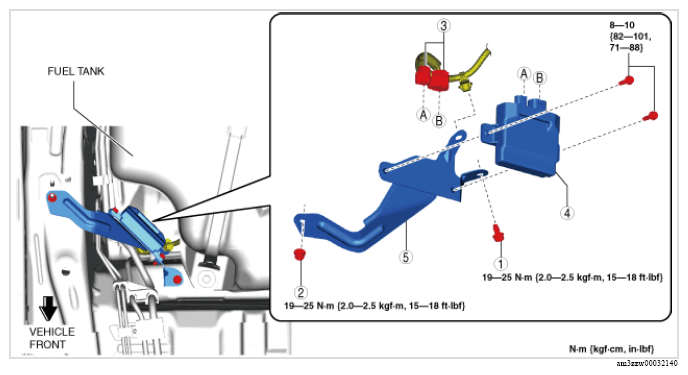

    Fig 1: Fuel Pump Control Module Components With Torque Specification
    G13175062Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fuel pump control module bracket installation bolt
    2 Fuel pump control module bracket installation nut
    3 Fuel pump control module connector
    4 Fuel pump control module
    5 Fuel pump control module bracket
