Navigation function
Map display, route guidance
- Calculates routes to the destination set by the user and provides guidance using maps and audio.
Turn-by-turn (TBT)
- Direction heading and distance to branch points are displayed in the active driving display.

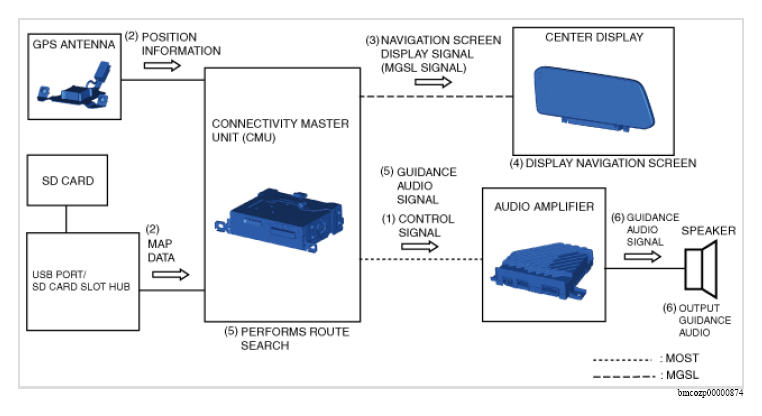

Map display, route guidance
- When the CMU receives the operation signal/detects the switch operation, it sends (1) the control signal to the audio amplifier.
- The CMU reads (2) the map information of the SD card inserted in the USB port/SD card slot hub. In addition, reception of the position information from the GPS antenna is initiated.
- The CMU sends (3) the navigation screen display signal (GMSL signal) to the center display based on the SD card map information and the position information from the GPS antenna.
- The center display displays (4) the navigation screen based on the received navigation screen display signal (GMSL signal).
- The CMU detects (5) the route to the destination set by the user and sends (5) the guidance audio signal to the audio amplifier after deciding the route.
- The audio amplifier sends (6) the guidance audio signal to the speakers and the speakers output (6) the guidance audio.

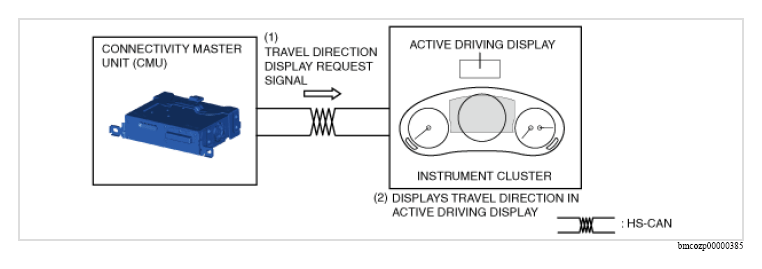

Turn-by-turn (TBT)
- The CMU sends (1) the travel direction display request signal to the instrument cluster.
- The instrument cluster displays (2) the travel direction in the active driving display based on the received travel direction display request signal.
