Rain Sensor Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the rate at which the rain sensor reflects or transmits infrared light between the rain sensor and the windshield, or through the protective sheet is changed, the rain sensor will determine that there is a malfunction in the rain detection function and stop auto wiper system control. Be careful of the following when installing the rain sensor:
- Do not reuse the rain sensor protective sheet
- Do not touch the rain sensor lens, rain sensor protective sheet, and sensor installation area on windshield with your fingers
- Verify that there is no air bubble after installing the rain sensor

Wipe off any oil or dirt from the rain sensor lens and the windshield using a clean rag.

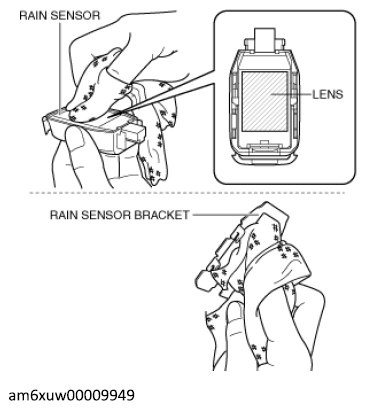

Fig 1: Wiping Off Any Oil Or Dirt From Rain Sensor Lens And Windshield Using Clean Rag
Courtesy of MAZDA MOTORS CORP.
Peel off backing of double-sided adhesive tape A from the rain sensor protective sheet.

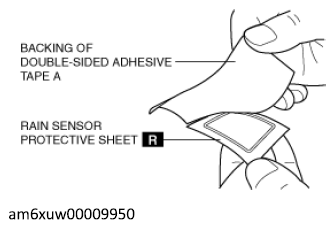

Fig 2: Peeling Off Backing Of Double-Sided Adhesive Tape A From Rain Sensor Protective Sheet
Courtesy of MAZDA MOTORS CORP.
Adhere the rain sensor protective sheet to the rain sensor lens.

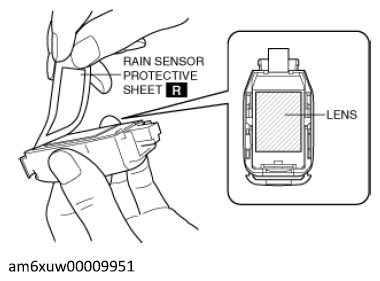

Fig 3: Adhering Rain Sensor Protective Sheet To Rain Sensor Lens
Courtesy of MAZDA MOTORS CORP.
Peel off backing of double-sided adhesive tape B from the rain sensor protective sheet.

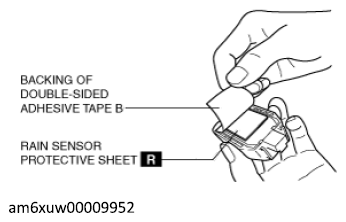

Fig 4: Peeling Off Backing Of Double-Sided Adhesive Tape B From Rain Sensor Protective Sheet
Courtesy of MAZDA MOTORS CORP.
Install the rain sensor to the bracket.

Fig 5: Rain Sensor To Bracket
Courtesy of MAZDA MOTORS CORP.
Press the rain sensor in the direction of the arrow (1) shown in the figure below and press out any air bubbles.

Fig 6: Pressing Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Verify that there is no air bubble between the rain sensor and the windshield.
