Washer Fluid-Level Sensor Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the fresh-air duct installation bolts. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the washer fluid-level sensor connector.

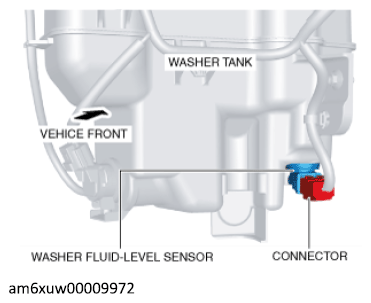

Fig 1: Washer Fluid-Level Sensor, Washer Tank And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

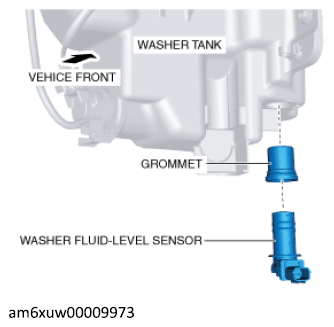

Fig 2: Washer Fluid-Level Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the washer fluid-level sensor is removed with washer fluid in the washer tank, the washer fluid may leak out. When removing the washer fluid-level sensor from the washer tank, place a container under the washer tank to collect washer fluid, and perform the procedure.
Remove the grommet.
Install in the reverse order of removal.
