Auto Leveling Control Module Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The auto leveling control module prior to replacement stores the vehicle specification information.
  • A new auto leveling control module does not store any vehicle specification information.
  • When the ignition is switched ON after the auto leveling control module is replaced, the auto leveling control module reads the vehicle specification information sent via CAN transmission from the instrument cluster using the automatic configuration function, and stores it.
  • The auto leveling control module records the vehicle height while it is unoccupied.
  • The new auto leveling control module does not record the vehicle height while it is unoccupied.
  • If the headlight auto leveling system initialization is performed after replacing the auto leveling control module, the auto leveling control module inputs the vehicle height from the auto leveling sensor and records it while the vehicle is unoccupied.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the driver-side front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the driver-side front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

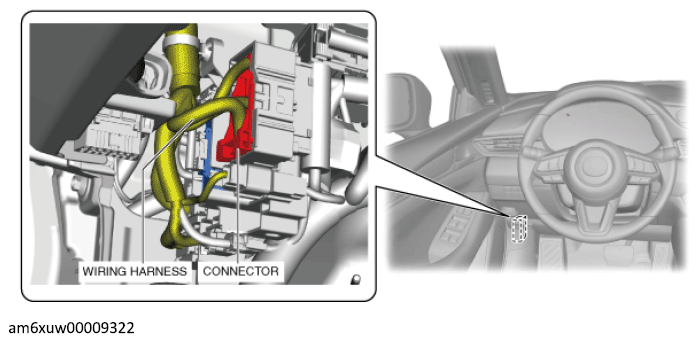

  4. Disconnect the connector and set the wiring harnesses aside to the positions where the auto leveling control module can be removed.
    Fig 1: Auto Leveling Control Module Wiring Harness And Connector
    G12234879Courtesy of MAZDA MOTORS CORP.

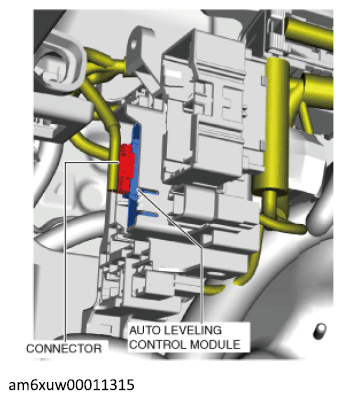

  5. Disconnect the connector.
    Fig 2: Auto Leveling Control Module And Connector
    G12234880Courtesy of MAZDA MOTORS CORP.

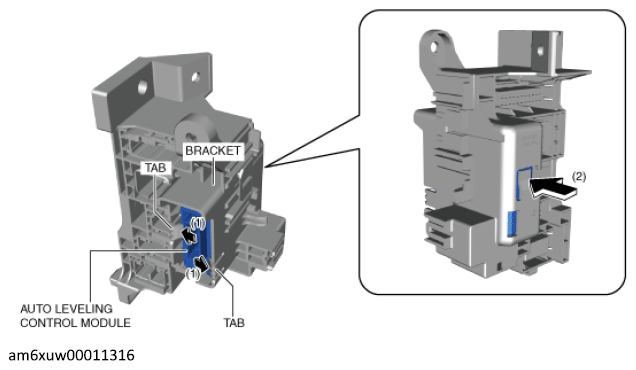

  6. While pressing tabs of the bracket in the direction of arrow (1) shown in the figure below, press out the auto leveling control module in the direction of arrow (2) from the back of the bracket to detach the auto leveling control module from tabs of the bracket.
    Fig 3: Pressing Tabs Of Bracket
    G12234881Courtesy of MAZDA MOTORS CORP.
  7. Remove the auto leveling control module.
  8. Install in the reverse order of removal.
  9. Switch the ignition ON (engine off or on) and perform the auto leveling control module automatic configuration.
  10. Clear the DTCs using the M-MDS. (See CLEARING DTC [AUTO LEVELING CONTROL MODULE] .)
  11. If the auto leveling control module is replaced with a new one, perform the headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
