Passenger Compartment Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    4. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    5. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    8. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    9. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    10. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    11. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    12. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    13. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    14. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    15. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    16. Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION .)
    17. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

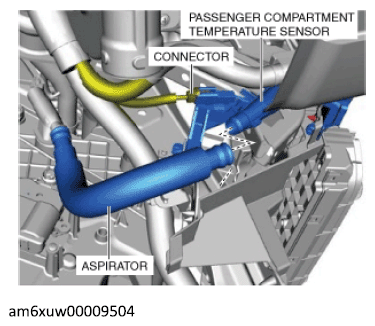

    Fig 1: Disconnecting Passenger Compartment Temperature Sensor Connector
    G12233657Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the aspirator from the passenger compartment temperature sensor.
  5. Remove the screw.

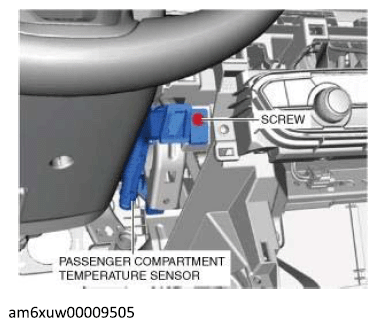

    Fig 2: Disconnecting Aspirator From Passenger Compartment Temperature Sensor
    G12233658Courtesy of MAZDA MOTORS CORP.
  6. Remove the passenger compartment temperature sensor.

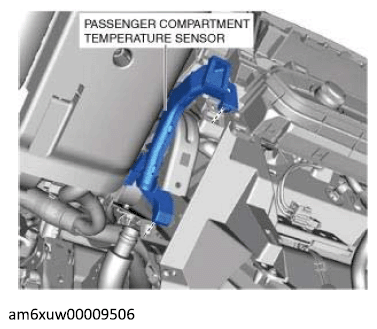

    Fig 3: Passenger Compartment Temperature Sensor
    G12233659Courtesy of MAZDA MOTORS CORP.
  7. Remove the aspirator.

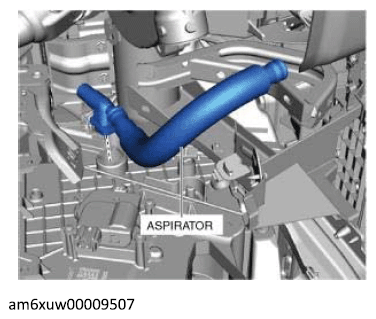

    Fig 4: Aspirator
    G12233660Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
