DTC B148E-00: Front Camera Malfunction: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

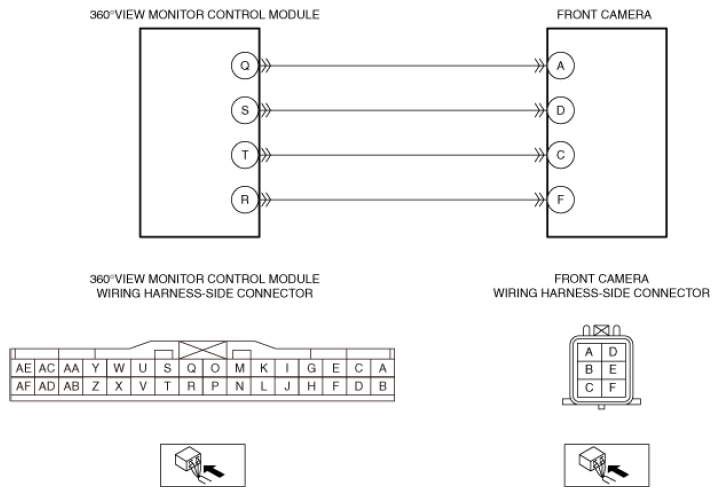

DTC B148E:00 (360° VIEW MONITOR CONTROLE MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Front Camera Malfunction |
| Detection condition |
- The 360°view monitor control module detects an input error from the front camera.
|
| Fail-safe |
- Switches front camera image to black screen
|
| Possible cause |
- 360°view monitor control module connector or terminal malfunction
- Front camera connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- 360°view monitor control module terminal S-Front camera terminal D
- Short to power supply in wiring harness between the following terminals:
- 360°view monitor control module terminal S-Front camera terminal D
- Open circuit in wiring harness between the following terminals:
- 360°view monitor control module terminal S-Front camera terminal D
- Front camera malfunction
- 360°view monitor control module malfunction
|
|
|
