Fuel Injector Removal/Installation: Notes

WARNING:

Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

CAUTION:

Touching the end of the fuel injector by hand or pressing it to an object may cause a malfunction. Be very careful when handling the end of the fuel injector.
When the fuel distributor is removed, air tightness of the fuel injector will be lost. Always replace the stopper ring, O-ring, back-up ring, spacer, and teflon seal of the fuel injector with new ones.
Do not remove the fuel pressure sensor from the fuel distributor.

Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5 (VIN M)] .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)
Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.5 (VIN M)] .)

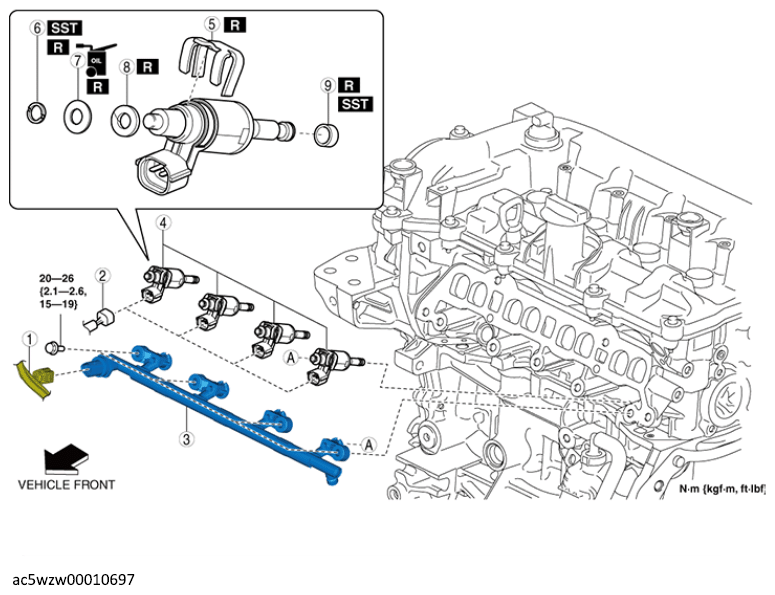

Fig 1: Fuel Injector Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel pressure sensor connector
2	Fuel injector connector
3	Fuel distributor (See Fuel Distributor Removal Note .) (See Fuel Distributor Installation Note .)
4	Fuel injector (See Fuel Injector Installation Note .)
5	Spacer (See Spacer Installation Note .)
6	Stopper ring (See Stopper Ring Removal Note .) (See Stopper Ring Installation Note .)
7	O-ring
8	Back-up ring (See Back-up Ring Installation Note .)
9	Teflon seal (See Teflon Seal Removal Note .) (See Teflon Seal Installation Note .)
