Front Combination Light Disassembly/Assembly

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw.

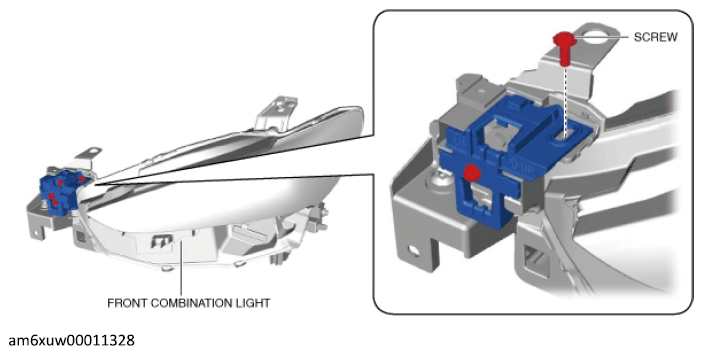

Fig 1: Front Combination Light And Screw
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and bracket A.

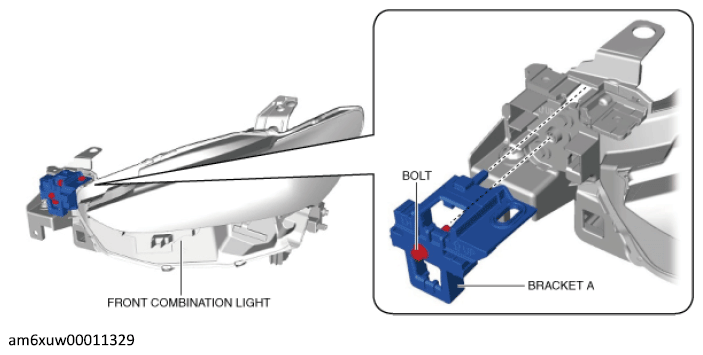

Fig 2: Front Combination Light, Bolt And Bracket A
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

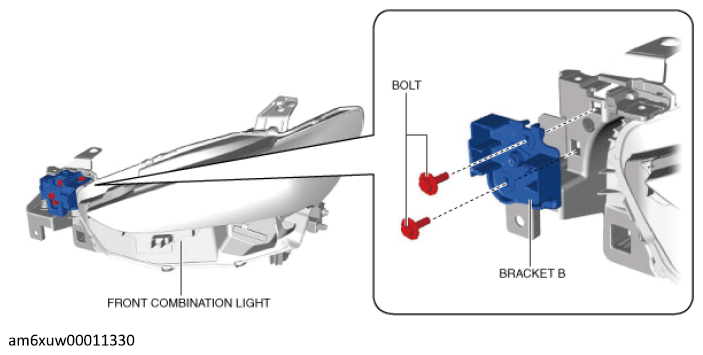

Fig 3: Front Combination Light, Bolts And Bracket B
Courtesy of MAZDA MOTORS CORP.
Remove the bracket B.
Assemble in the reverse order of disassembly.
