Refrigerant System Performance Test
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the refrigerant pressure. (See REFRIGERANT PRESSURE CHECK .)

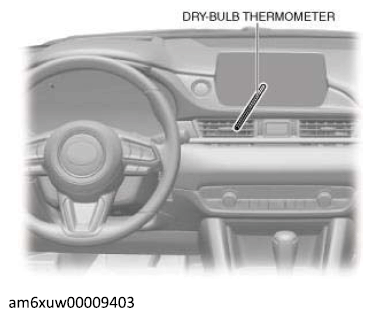

- Place a dry-bulb thermometer in the driver's side center ventilator outlet.
- Start the engine and warm it up.
- Prepare the vehicle as follows.
- Airflow volume: MAX HI
- A/C switch: ON
- Air intake port: REC
- Airflow temperature: MAX COLD
- Airflow mode: VENT
- Bonnet: Open
- All the doors and the trunk: Close
- All the windows: Close
- Engine speed:1, 500 rpm
- Wait until the air conditioner output temperature stabilizes. (The A/C compressor repeatedly turns on and off at regular intervals.)
- Verify the air conditioner output temperature and the ambient temperature.
- Measure the air conditioner output temperature after approx. 10 min have elapsed from engine start.
- Verify that there is air conditioner output temperature readings within the shaded areas of the figure below.

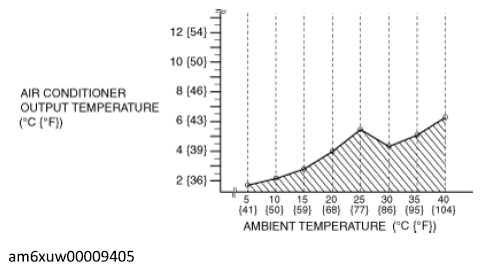

SKYACTIV-G 2.5
Courtesy of MAZDA MOTORS CORP.

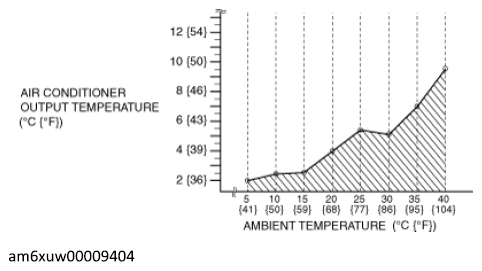

SKYACTIV-G 2.5T
Courtesy of MAZDA MOTORS CORP.

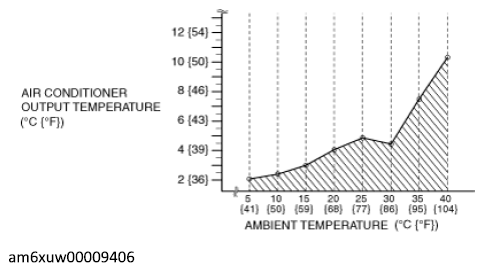

SKYACTIV-D 2.2
Courtesy of MAZDA MOTORS CORP.
- If not as verified, inspect the refrigerant system according to the troubleshooting chart. (See FOREWORD [FULL-AUTO AIR CONDITIONER] .)
