MAP Sensor No. 2 Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
Remove the bolt, nuts and adapter.

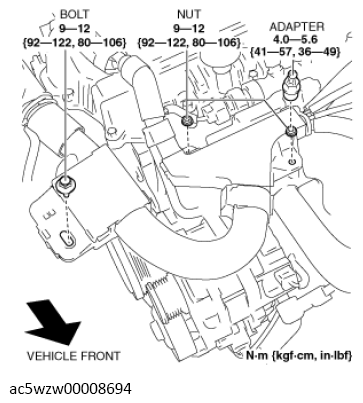

Fig 1: Adapter, Bolt And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

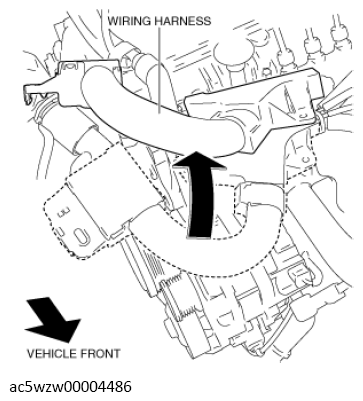

Set the wiring harness aside. (See PROTECTOR INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Disconnect the MAP sensor No. 2 connector.
Remove the MAP sensor No. 2.

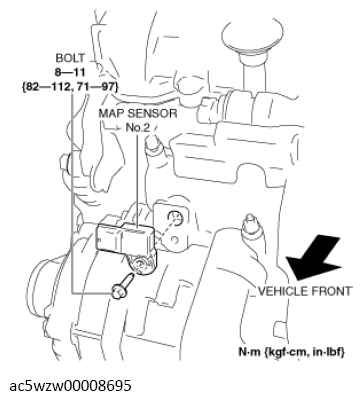

Fig 2: MAP Sensor No. 2 And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
