DTC B113E-12: Power Liftgate (Plug) Rear Switch Circuit Malfunction [Power Liftgate (Plug) Control Module]: Notes

DTC B113E:12 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Power liftgate (PLUG) rear switch circuit malfunction
Detection condition	Power liftgate (PLUG) control module detects a short to power supply in the power liftgate (PLUG) rear switch circuit.
Fail-safe	Stops the power liftgate (PLUG) system operation.

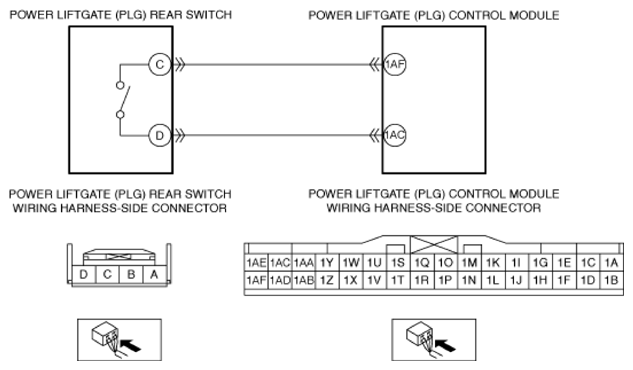

Possible cause	Power liftgate (PLUG) rear switch connector or terminal malfunction Power liftgate (PLUG) rear switch malfunction Power liftgate (PLUG) control module connector or terminal malfunction Short to power supply in wiring harness between power liftgate (PLUG) rear switch terminal C and power liftgate (PLUG) control module terminal 1AF Power liftgate (PLUG) control module malfunction
Courtesy of MAZDA MOTORS CORP.
