DTC B1308-11: Touch Sensor Circuit Malfunction [Power Liftgate (Plug) Control Module]: Notes

DTC B1308:11 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Touch sensor circuit malfunction
Detection condition	The power liftgate (PLUG) control module detects a short to ground in the touch sensor circuit for 5 min more
Fail-safe	Stops the power liftgate (PLUG) system operation.

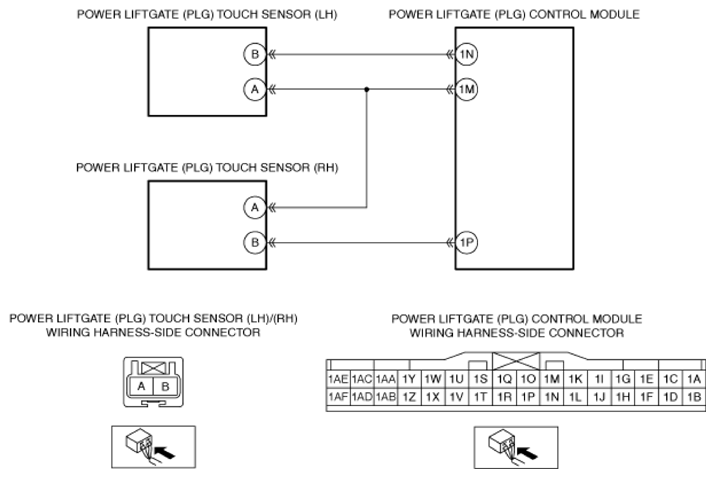

Possible cause	Power liftgate (PLUG) touch sensor (LH) connector or terminal malfunction Power liftgate (PLUG) touch sensor (RH) connector or terminal malfunction Power liftgate (PLUG) control module connector or terminal malfunction Short to ground in wiring harness between the following terminals: Power liftgate (PLUG) touch sensor (LH) terminal B-Power liftgate (PLUG) control module terminal 1N Power liftgate (PLUG) touch sensor (RH) terminal B-Power liftgate (PLUG) control module terminal 1P Power liftgate (PLUG) touch sensor (LH) malfunction Power liftgate (PLUG) touch sensor (RH) malfunction Power liftgate (PLUG) control module malfunction
Courtesy of MAZDA MOTORS CORP.
