DTC B1495-87: Lin Communication Error [Power Liftgate (Plug) Control Module]: Notes
DTC B1495:87 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
LIN communication error |
| Detection condition |
- LIN bus communication line malfunction detected
|
| Fail-safe |
- Stops the hands-free liftgate operation.
|
| Possible cause |
- Foot-motion detection unit removed without turning off hands-free liftgate personalization settings
- Malfunction in LIN bus communication line

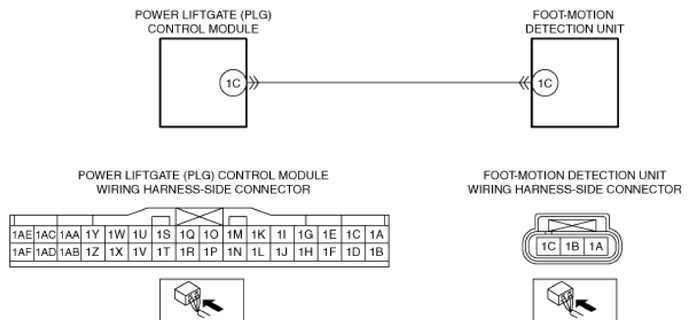

- Power liftgate (PLUG) control module terminal 1C-Foot-motion detection unit terminal 1C
- Foot-motion detection unit malfunction
- Power liftgate (PLUG) control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
