DTC B139D-24: Walk-In Switch (LH) Is Stuck On [Rear One-Touch Walk-In Control Module]: Notes
DTC B139D:24 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Walk-in switch (LH) is stuck on |
| Detection condition |
- Rear one-touch walk-in control module detects the walk-in switch (LH) is stuck on.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Walk-in switch (LH) connector or terminal malfunction
- Rear one-touch walk-in control module connector or terminal malfunction

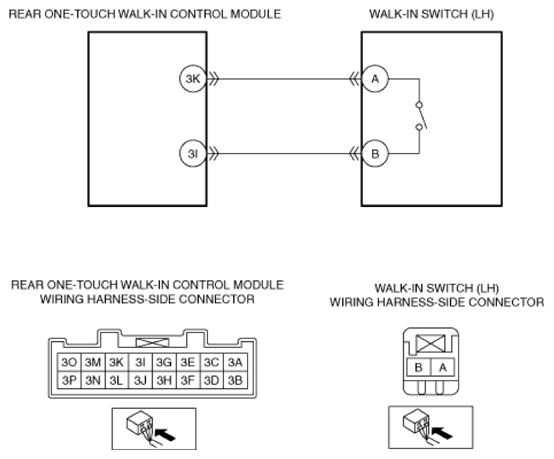

- Short to ground in wiring harness between the rear one-touch walk-in control module terminal 3K-Walk-in switch (LH) terminal A
- Walk-in switch (LH) malfunction
- Rear one-touch walk-in control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
