Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Each Sub-Switch But Can Be Operated Using Power Window Main Switch): Notes

DOOR GLASS OTHER THAN DRIVER'S DOOR CANNOT BE OPERATED DESCRIPTION AND POSSIBLE CAUSES

Description	Door glass other than driver's door cannot be operated using sub-switches but can be operated using power window main switch

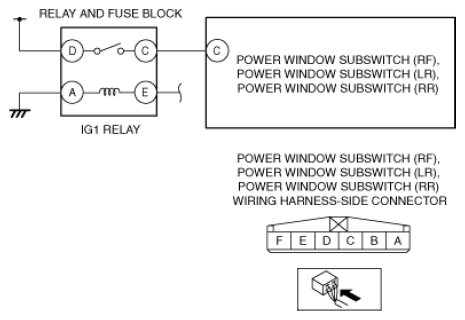

Possible Causes	Power window sub-switch malfunction Malfunction in power window sub-switch power supply circuit Short to ground in wiring harness between IG1 relay terminal C and power window sub-switch terminal C Open circuit in wiring harness between IG1 relay terminal C and power window sub-switch terminal C Connector poor contact or terminal damage Customer mis-operation or misunderstanding
Courtesy of MAZDA MOTORS CORP.
