Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch But Can Be Operated Using Each Sub-Switch): Notes

DOOR GLASS OTHER THAN DRIVER'S DOOR CANNOT BE OPERATED DESCRIPTION AND POSSIBLE CAUSES

Description

Door glass other than driver's door can be operated using sub-switches but cannot be operated using power window main switch

Possible Causes

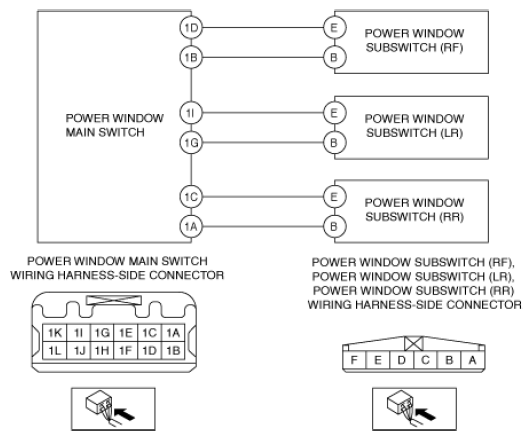

Power window main switch malfunction Short to ground in wiring harness between the following terminals: Power window main switch terminal 1D and power window sub-switch (RF) terminal E Power window main switch terminal 1B and power window sub-switch (RF) terminal B Power window main switch terminal 1I and power window sub-switch (LR) terminal E Power window main switch terminal 1G and power window sub-switch (LR) terminal B Power window main switch terminal 1C and power window sub-switch (RR) terminal E Power window main switch terminal 1A and power window sub-switch (RR) terminal B Open circuit in wiring harness between the following terminals: Power window main switch terminal 1D and power window sub-switch (RF) terminal E Power window main switch terminal 1B and power window sub-switch (RF) terminal B Power window main switch terminal 1I and power window sub-switch (LR) terminal E Power window main switch terminal 1G and power window sub-switch (LR) terminal B Power window main switch terminal 1C and power window sub-switch (RR) terminal E Power window main switch terminal 1A and power window sub-switch (RR) terminal B Connector poor contact or terminal damage

Courtesy of MAZDA MOTORS CORP.
