Position Memory Control Module Inspection
- Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the position memory control module. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .)

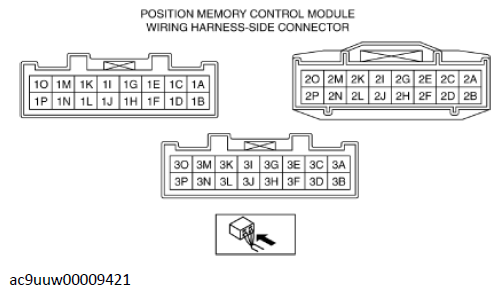

Terminal Voltage Table (Reference)
| Terminal | Signal name | Connected to | Measured condition | Voltage (V) | Inspection item(s) |
|---|---|---|---|---|---|
| 1A | - | - | - | - | - |
| 1B | - | - | - | - | - |
| 1C | CAN_H | CAN system related module | Terminal used for communication therefore determination based on terminal voltage is not possible. | ||
| 1E | CAN_L | CAN system related module | Terminal used for communication therefore determination based on terminal voltage is not possible. | ||
| 1G | Ignition power supply | METER1 10A fuse | Ignition switched ON (engine off) | B+ |
|
| Ignition switched OFF (LOCK) | 1.0 or less | ||||
| 1H | Signal GND | Body ground | Under any condition | 1.0 or less | Related wiring harness |
| 1J | Power GND | Body ground | Under any condition | 1.0 or less | Related wiring harness |
| 1M | Power supply | INTERIOR 10A fuse | Under any condition | B+ |
|
| 1O | Power supply | P.SEAT D 30A fuse | Under any condition | B+ |
|
| 2A | Slide switch input (forward) | Driver-side power seat switch | Press the slide switch to forward | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2B | Slide switch input (backward) | Driver-side power seat switch | Press the slide switch to backward | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2C | Tilt switch input (up) | Driver-side power seat switch | Press the tilt switch to up | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2D | Tilt switch input (down) | Driver-side power seat switch | Press the tilt switch to down | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2E | Lift switch input (up) | Driver-side power seat switch | Press the lift switch to up | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2F | Lift switch input (down) | Driver-side power seat switch | Press the lift switch to down | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2G | Recliner switch input (forward) | Driver-side power seat switch | Press the recliner switch to forward | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2H | Recliner switch input (backward) | Driver-side power seat switch | Press the recliner switch to backward | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2I | Signal GND input | Driver-side power seat switch | Under any condition | 1.0 or less |
|
| 2J | Signal GND input | Position memory switch | Under any condition | 1.0 or less |
|
| 2K | Set switch input | Position memory switch | Press the set switch | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2L | Memory switch 1 input | Position memory switch | Press the memory switch 1 | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 2M | Memory switch 2 input | Position memory switch | Press the memory switch 2 | 1.0 or less |
|
| Other | 4.8 or more | ||||
| 3A | Slide motor output (forward) | Slide motor | While slide motor is moving to forward | B+ |
|
| Other | 1.0 or less | ||||
| 3B | Slide motor output (backward) | Slide motor | While slide motor is moving to backward | B+ |
|
| Other | 1.0 or less | ||||
| 3C | Tilt motor output (up) | Tilt motor | While tilt motor is moving to up | B+ |
|
| Other | 1.0 or less | ||||
| 3D | Tilt motor output (down) | Tilt motor | While tilt motor is moving to down | B+ |
|
| Other | 1.0 or less | ||||
| 3E | Lift motor output (up) | Lift motor | While lift motor is moving to up | B+ |
|
| Other | 1.0 or less | ||||
| 3F | Lift motor output (down) | Lift motor | While lift motor is moving to down | B+ |
|
| Other | 1.0 or less | ||||
| 3G | Recliner motor output (forward) | Recliner motor | While recliner motor is moving to forward | B+ |
|
| Other | 1.0 or less | ||||
| 3H | Recliner motor output (backward) | Recliner motor | While recliner motor is moving to backward | B+ |
|
| Other | 1.0 or less | ||||
| 3I | Slide position sensor power supply | Slide position sensor | Slide motor moving | B+ |
|
| Slide motor stopped | 1.0 or less | ||||
| 3J | Slide motor pulse | Slide position sensor | Measure the waveform while driving motor operation using the oscilloscope. | High output: 4.8 or more |
|
| Low output: 1.0 or less | |||||
| Slide motor stopped | 1.0 or less or 4.8 or more | ||||
| 3K | Tilt position sensor power supply | Tilt position sensor | Tilt motor moving | B+ |
|
| Tilt motor stopped | 1.0 or less | ||||
| 3L | Tilt motor pulse | Tilt position sensor | Measure the waveform while driving motor operation using the oscilloscope. | High output: 4.8 or more |
|
| Low output: 1.0 or less | |||||
| Tilt motor stopped | 1.0 or less or 4.8 or more | ||||
| 3M | Lift position sensor power supply | Lift position sensor | Lift motor moving | B+ |
|
| Lift motor stopped | 1.0 or less | ||||
| 3N | Lift motor pulse | Lift position sensor | Measure the waveform while driving motor operation using the oscilloscope. | High output: 4.8 or more |
|
| Low output: 1.0 or less | |||||
| Lift motor stopped | 1.0 or less or 4.8 or more | ||||
| 3O | Recliner position sensor power supply | Recliner position sensor | Recliner motor moving | B+ |
|
| Recliner motor stopped | 1.0 or less | ||||
| 3P | Recliner motor pulse | Recliner position sensor | Measure the waveform while driving motor operation using the oscilloscope. | High output: 4.8 or more |
|
| Low output: 1.0 or less | |||||
| Recliner motor stopped | 1.0 or less or 4.8 or more | ||||
