Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch Or Each Sub-Switch): Notes

DOOR GLASS OTHER THAN DRIVER'S DOOR CANNOT BE OPERATED DESCRIPTION AND POSSIBLE CAUSES

Description	Door glass other than driver's door cannot be operated using power window main switch or power window sub-switch

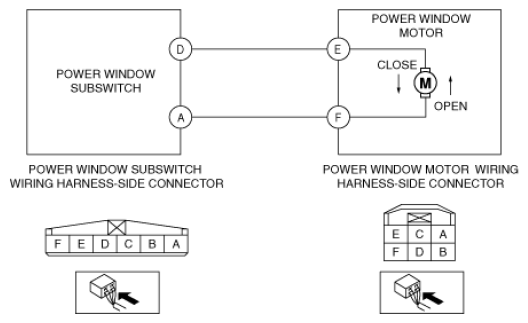

Possible Causes	Power window sub-switch malfunction Power window motor malfunction Short to ground in wiring harness between the following terminals: Power window sub-switch terminal A and power window motor terminal F Power window sub-switch terminal D and power window motor terminal E Open circuit in wiring harness between the following terminals: Power window sub-switch terminal A and power window motor terminal F Power window sub-switch terminal D and power window motor terminal E Connector poor contact or terminal damage
Courtesy of MAZDA MOTORS CORP.
