DTC P0103-00: MAF Sensor Circuit High Input: Notes
DTC P0103:00 (PCM, SKYACTIV-G 2.5T) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0103:00 |
MAF sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAF sensor. If the input voltage at the PCM terminal 2BC is above 4.94 V for 5 s, the PCM determines that the MAF sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
- Inhibits the evaporative purge control.
|
| POSSIBLE CAUSE |
- MAF sensor/IAT sensor No. 1 connector or terminals malfunction
- PCM connector or terminals malfunction
- MAF sensor malfunction

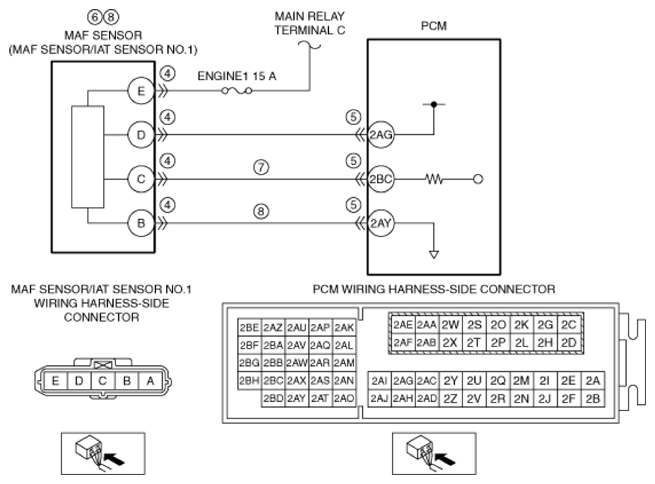

- Short to power supply in wiring harness between MAF sensor/IAT sensor No. 1 terminal C and PCM terminal 2BC
- Open circuit in wiring harness between MAF sensor/IAT sensor No. 1 terminal B and PCM terminal 2AY
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
