Air Intake Actuator Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Install the air intake actuator.

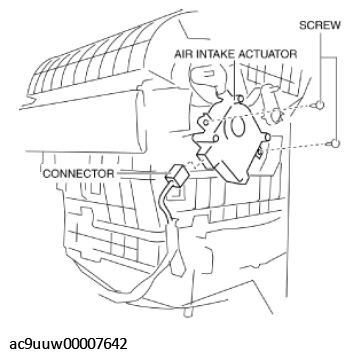

Fig 1: Installing Air Intake Actuator
Courtesy of MAZDA MOTORS CORP.
Install the screws.
Connect the connector.
Align the air intake link installation shaft with the shape of the air intake actuator hole, and install the air intake link. (See AIR INTAKE LINK INSTALLATION NOTE .)

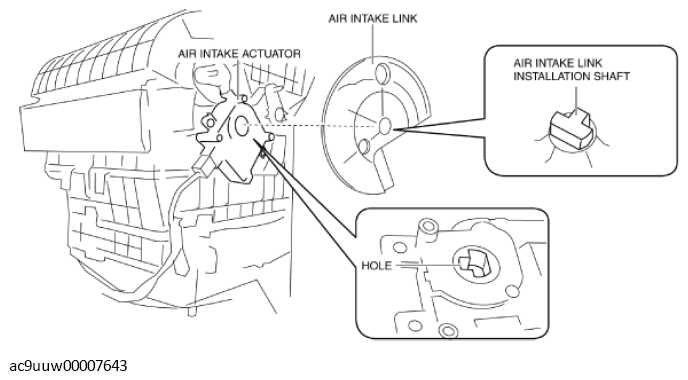

Fig 2: Aligning Air Intake Link Installation Shaft With Shape Of Air Intake Actuator Hole
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
2. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
3. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
5. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
7. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
8. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
9. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
12. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
13. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
