Passenger Compartment Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
4. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
5. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
6. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
7. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

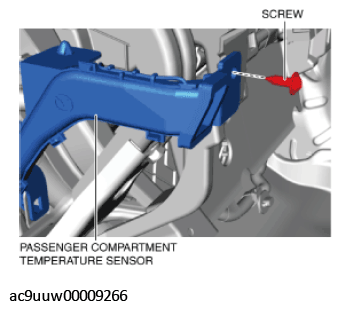

Remove the screw.

Fig 1: Removing Passenger Compartment Temperature Sensor Screw
Courtesy of MAZDA MOTORS CORP.

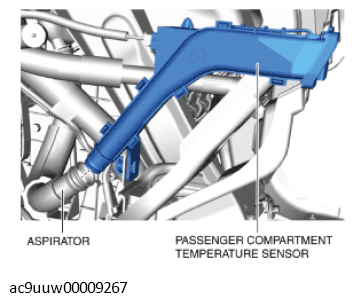

Disconnect the aspirator from the passenger compartment temperature sensor.

Fig 2: Disconnecting Aspirator From Passenger Compartment Temperature Sensor
Courtesy of MAZDA MOTORS CORP.

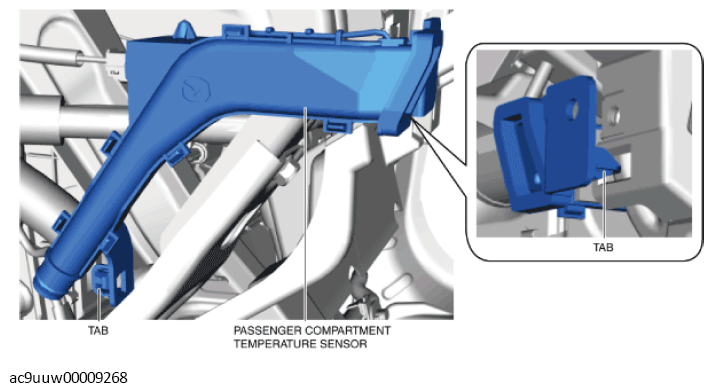

Remove the passenger compartment temperature sensor.

Fig 3: Passenger Compartment Temperature Sensor Tab Location
Courtesy of MAZDA MOTORS CORP.

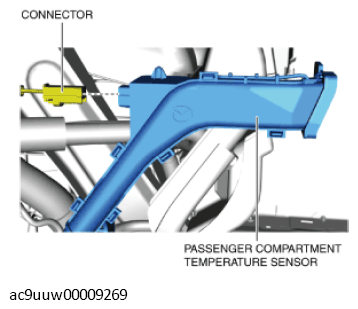

Disconnect the connector.

Fig 4: Disconnecting Passenger Compartment Temperature Sensor Connector
Courtesy of MAZDA MOTORS CORP.

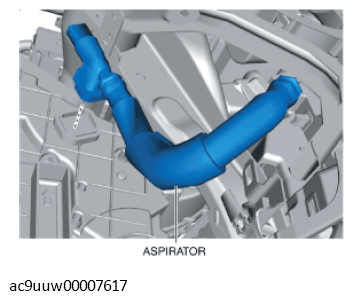

Remove the aspirator.

Fig 5: Removing Aspirator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
