Oil Cooler Removal/Installation: Notes

WARNING:

Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

NOTE:

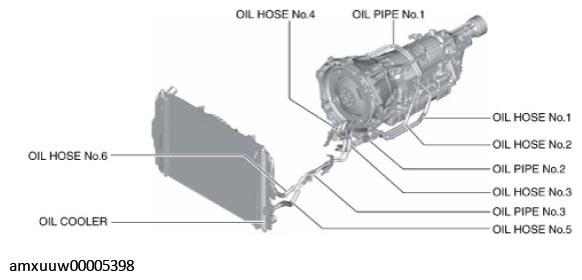

The figure shows the parts which are replaced in the following servicing procedure.

Courtesy of MAZDA MOTORS CORP.
