Vehicle interior, front

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

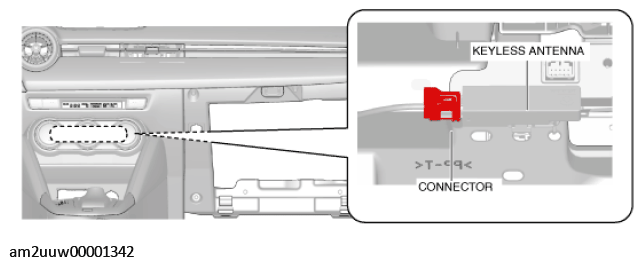

  3. Disconnect the connector from the keyless antenna.
    G11472688Courtesy of MAZDA MOTORS CORP.

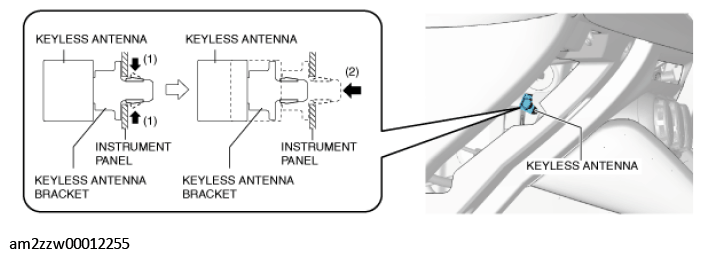

  4. While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the instrument panel.
    G11472689Courtesy of MAZDA MOTORS CORP.

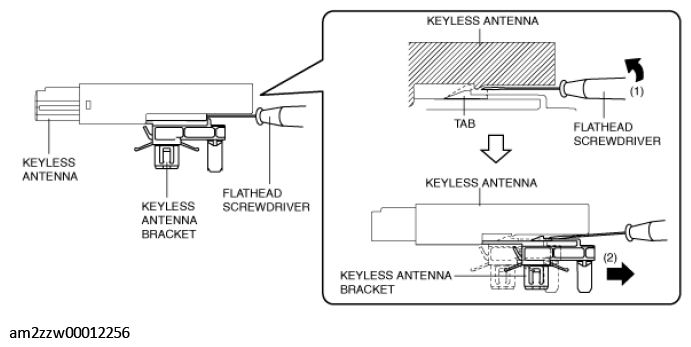

  5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
    G11273514Courtesy of MAZDA MOTORS CORP.
  6. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  7. Remove the keyless antenna bracket from the keyless antenna.
  8. Install in the reverse order of removal.
