DTC P0102-00: MAF Sensor Circuit Low Input: Notes
DTC P0102:00 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0102:00 |
MAF sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors input voltage from the MAF sensor. If the input voltage at the PCM terminal 2BC is below 0.2 V for 5 s, the PCM determines that the MAF sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
- Inhibits the evaporative purge control.
|
| POSSIBLE CAUSE |
- MAF sensor/IAT sensor No. 1 connector or terminals malfunction
- Short to ground or open circuit in MAF sensor power supply circuit
- Short to ground in wiring harness between ENGINE1 15 A fuse and MAF sensor/IAT sensor No. 1 terminal E
- ENGINE1 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal C and MAF sensor/IAT sensor No. 1 terminal E
- Short to ground in wiring harness between the following terminals:
- MAF sensor/IAT sensor No. 1 terminal D-PCM terminal 2BB
- MAF sensor/IAT sensor No. 1 terminal C-PCM terminal 2BC
- PCM connector or terminals malfunction
- MAF sensor signal circuit and ground circuit are shorted to each other
- Open circuit in wiring harness between the following terminals:
- MAF sensor/IAT sensor No. 1 terminal D-PCM terminal 2BB
- MAF sensor/IAT sensor No. 1 terminal C-PCM terminal 2BC
- MAF sensor malfunction
- PCM malfunction
|

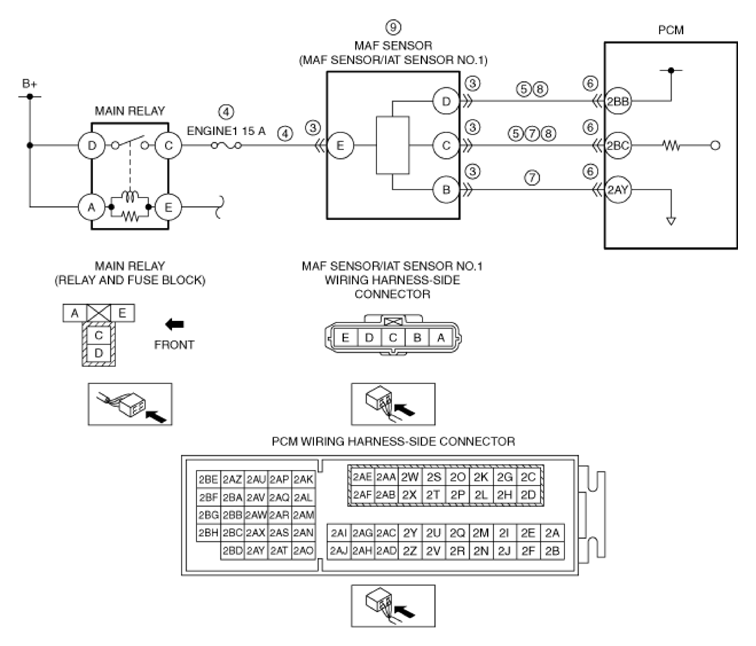

 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
