Caliper (Front) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.

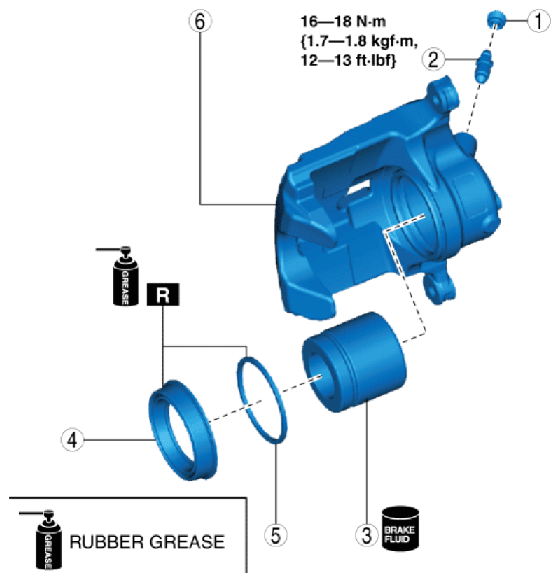

Fig 1: Front Caliper Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note .)
4	Dust seal
5	Piston seal
6	Caliper body

Assemble in the reverse order of removal.
