Front Brake (Disc) Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.COMPONENT DESCRIPTION

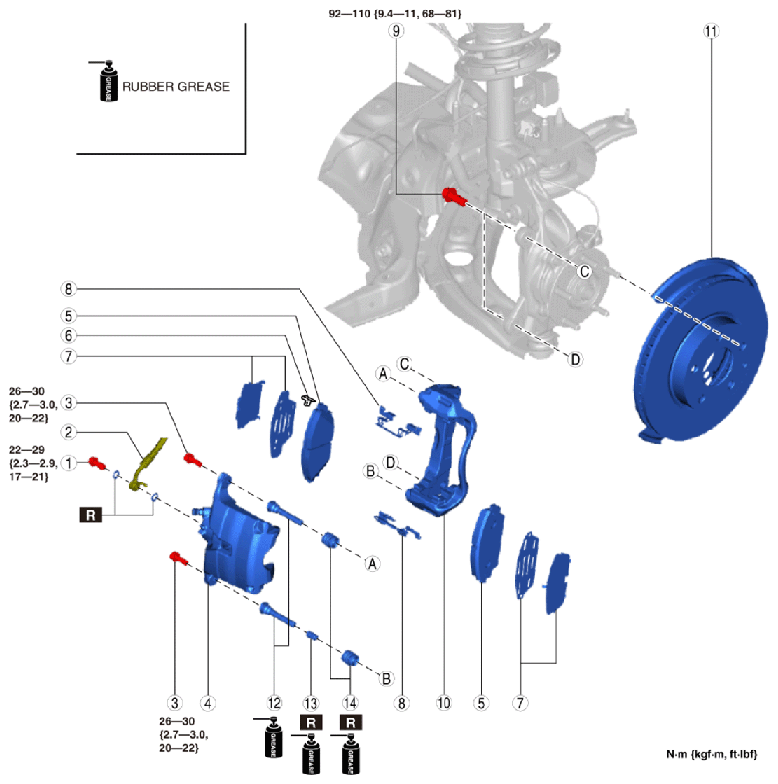

1 Bolt 2 Brake hose 3 Bolt 4 Caliper 5 Disc pad
(See Disc Pad Installation Note .)6 Wear indicator 7 Shim 8 Guide plate
(See Guide Plate Installation Note .)9 Bolt 10 Mounting support 11 Disc plate 12 Slide pin 13 Bushing 14 Dust boot
