Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

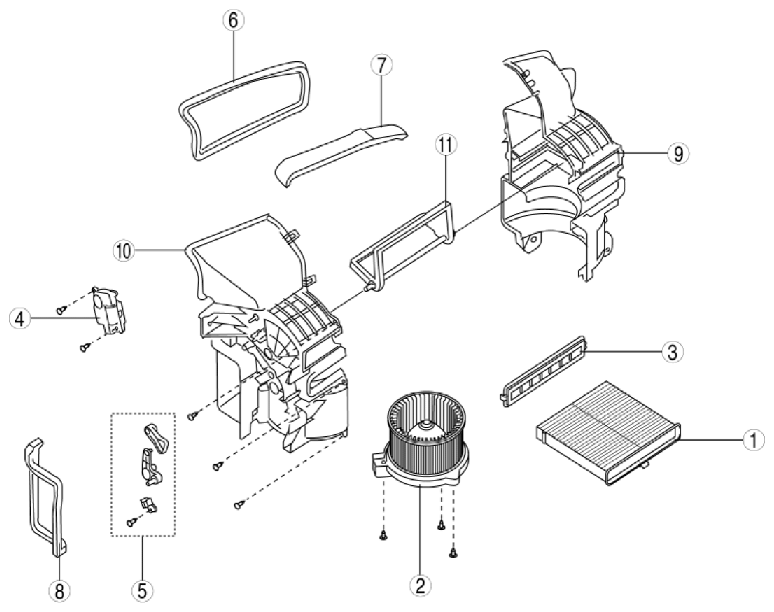

Fig 1: Exploded View Of Blower Unit

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Air filter
2	Blower motor
3	Cover
4	Air intake actuator (with air intake actuator)
5	Air intake link (with air intake link)
6	Polyurethane A
7	Polyurethane B
8	Polyurethane C
9	Blower case A
10	Blower case B
11	Air intake door

Assemble in the reverse order of disassembly.
