Steering Shift Switch Inspection
WARNING:
- Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

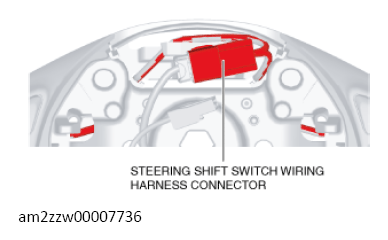

- Disconnect the steering shift switch wiring harness connector.

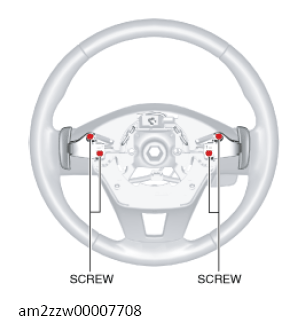

- Remove the screw.

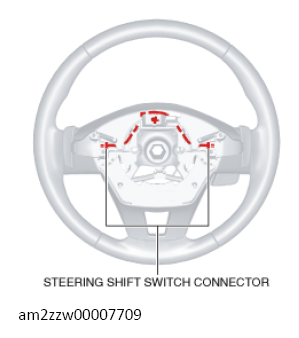

- Disconnect the steering shift switch connector.

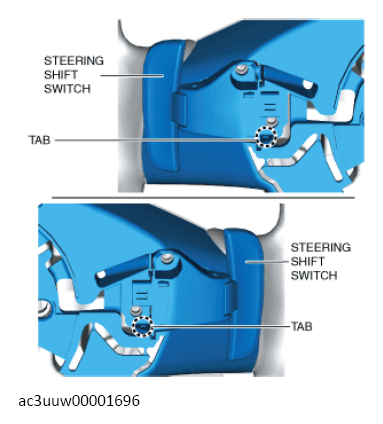

- Release the tab shown in the figure and remove the steering shift switch.
- Using a precision flathead screwdriver, release the tab.
- Measure the continuity between steering shift switch wiring harness connector terminals A-B and terminals D-E.
Up switch
Down switch
SWITCH TERMINAL CONTINUITY REFERENCE
| Switch | Terminal | Test condition | Continuity |
|---|---|---|---|
| Up switch | A-B | Up switch is operated (up switch is pulled outward) | Continuity |
| Up switch is not operated (up switch is not pulled outward) | No continuity | ||
| Down switch | D-E | Down switch is operated (down switch is pulled outward) | Continuity |
| Down switch is not operated (down switch is not pulled outward) | No continuity |
- If there is any malfunction, replace the steering shift switch. (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
