Front Seat Back Frame Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

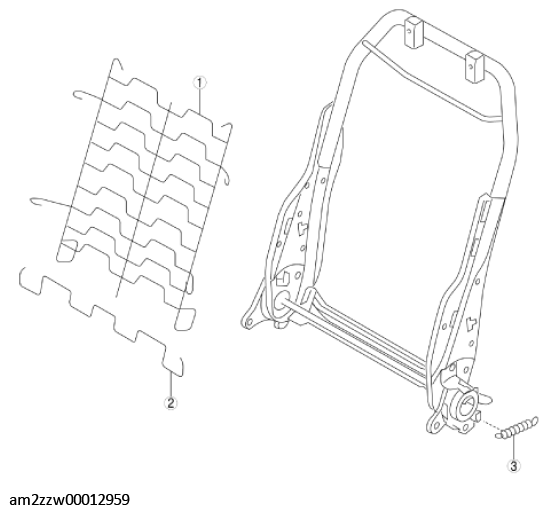

    G11472488Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Suspension mat
    2 Spring A
    3 Spring B
  2. Assemble in the reverse order of disassembly.
