Auto Hold Does Not Work: Notes

Troubleshooting item AUTOHOLD does not work
Possible cause
  • Stuck AUTOHOLD switch in off position
  • Electrical supply unit (ESU) detects a malfunction
  • Open circuit in AUTOHOLD switch signal circuit
  • Open circuit in AUTOHOLD switch ground circuit

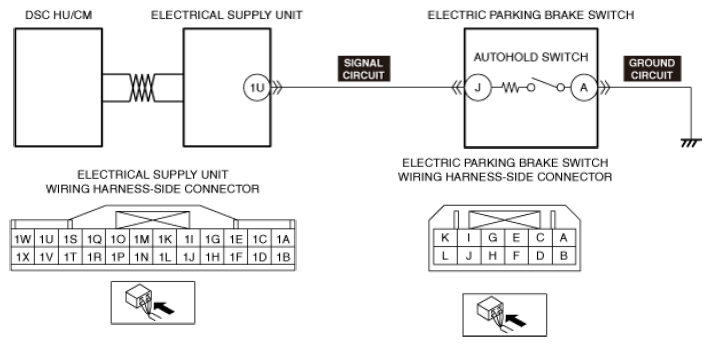

G13558257Courtesy of MAZDA MOTORS CORP.
