Joint Hose Installation Note

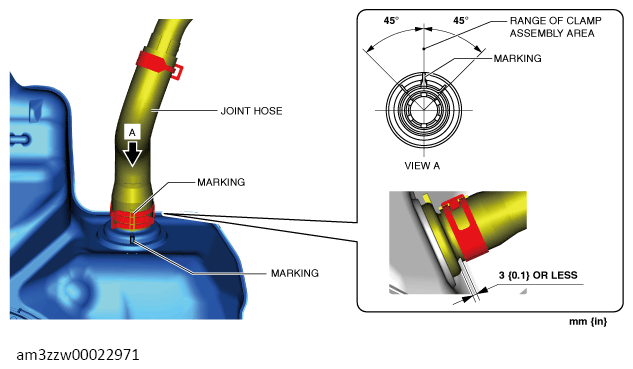

  1. Align the joint hose marking with the pipe marking as shown in the illustration and assemble.

    Fuel tank side

    G13557206Courtesy of MAZDA MOTORS CORP.

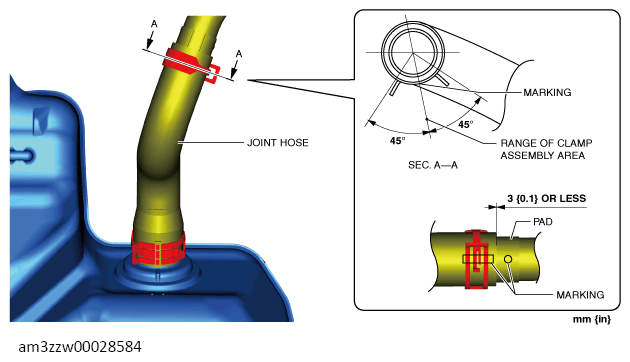

  2. Align the joint hose marking with the fuel-filler pipe marking as shown in the illustration and assemble.

    Fuel-filler pipe side

    G13557207Courtesy of MAZDA MOTORS CORP.
