Push Button Start Removal/Installation
WARNING:
- Handling the knee air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the knee air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
- Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
- Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
- Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
- Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)

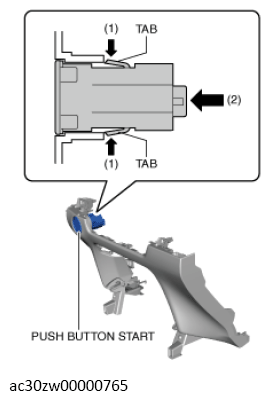

- While pressing the push button start tabs in the direction of the arrows (1) shown in the illustration, and push out the push button start in the direction of the arrow (2) shown in the illustration to detach the push button start tabs from the center lower panel.

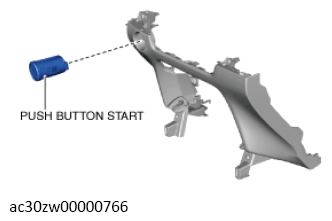

- Remove the push button start.
- Install in the reverse order of removal.
